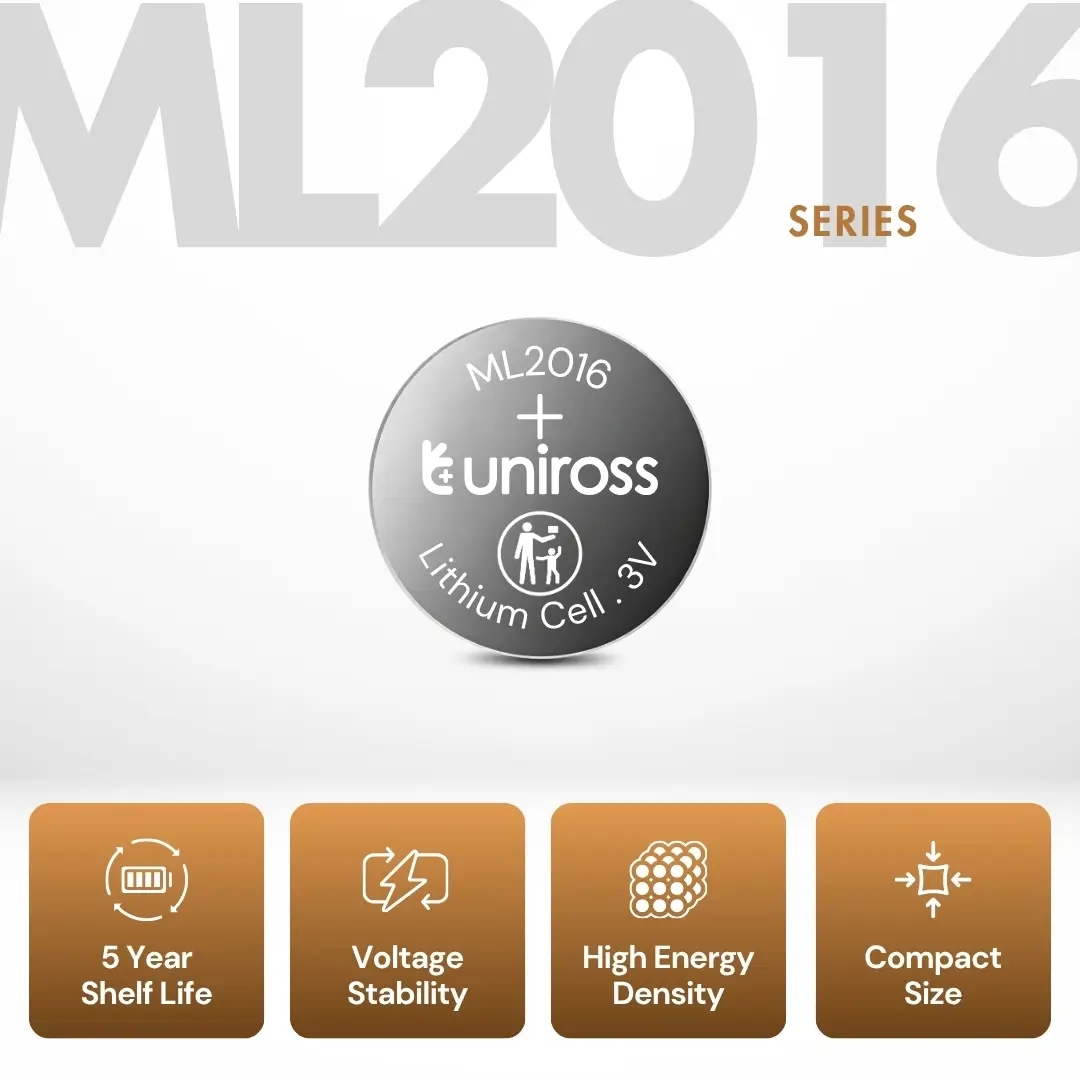

Uniross ML2016 lithium-aluminium rechargeable coin cells deliver 30 mAh at 3V in a 20.0mm diameter, 1.6mm profile — the thinnest cell in the Uniross ML range. The 1.6mm height is the critical specification for PCB designs, card form factor devices, and slim-profile housings where total height budget is constrained and a rechargeable 20mm coin cell is required. Rated for up to 400 charge/discharge cycles at 10% DOD, the ML2016 is suited to any embedded system with an integral charging circuit and a mechanical requirement for the thinnest available 20mm rechargeable coin cell. Available in bulk from European stock.
| Battery Type | ML2016 |
|---|---|
| Chemistry | Lithium Aluminium (Li-Al) |
| Nominal Voltage (V) | 3V |
| Nominal Capacity (mAh) | 30 mAh |
| Standard Current (mA) | 0.2 mA |
| Charge/discharge Cycle | 400 (10%DOD) / 180 (20%DOD) |
| Max Dimensions (mm) | ø20.0 x 1.6 mm |
| Weight Approx (g) | 1.8 g |
| Shelf life | 5 Years |
| Working Temperature (℃) | -20°C to +60°C |
