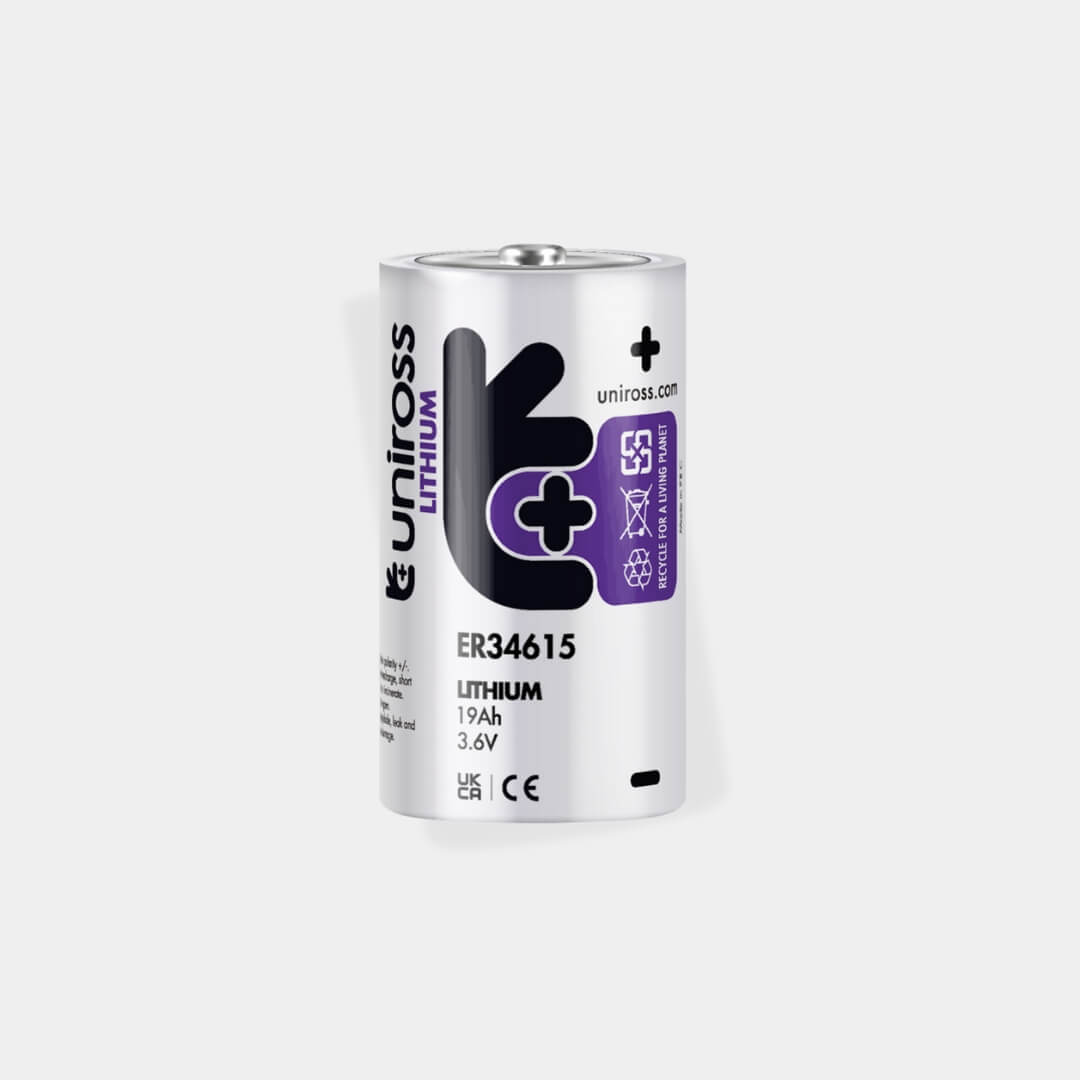

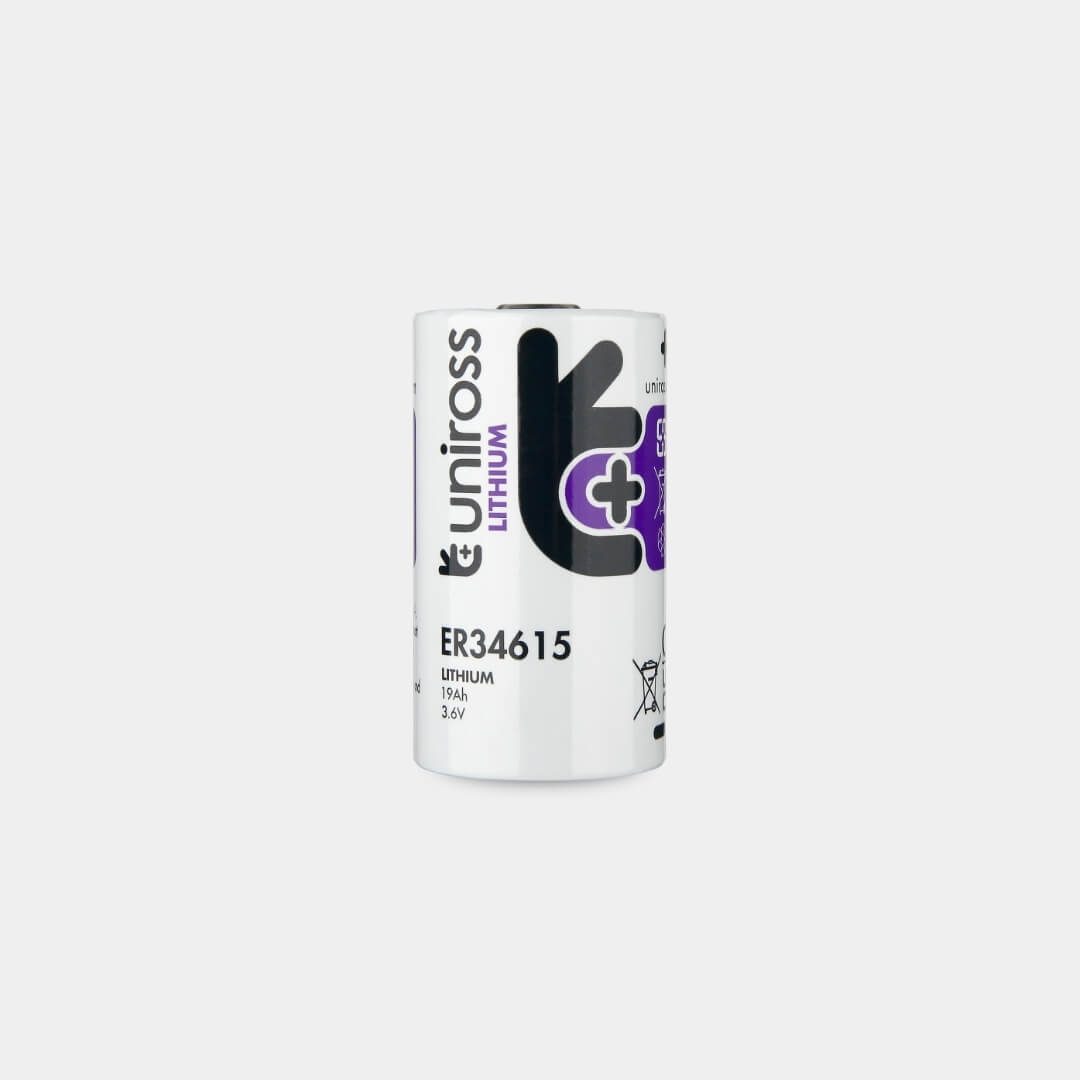

UER34615

Model No: UER34615

The Uniross UER34615 is a 3.6V 19Ah lithium thionyl chloride primary cell in the D-cell format (Φ34.2 × 61.5 mm) — the highest capacity single cell in the Uniross industrial Li/SOCl₂ range. With a continuous current rating of 150 mA, a pulse capability of 300 mA, and an operating temperature range of -55°C to +85°C, this bobbin-type cell is specified for power-intensive remote infrastructure, smart metering, and long-interval industrial telemetry where large capacity reserves eliminate the need for multi-cell assemblies. Energy density exceeds 620 Wh/kg. 10-year shelf life at room temperature. Supplied in bulk from European stock for OEM and volume procurement.

Recommended for high drain devices

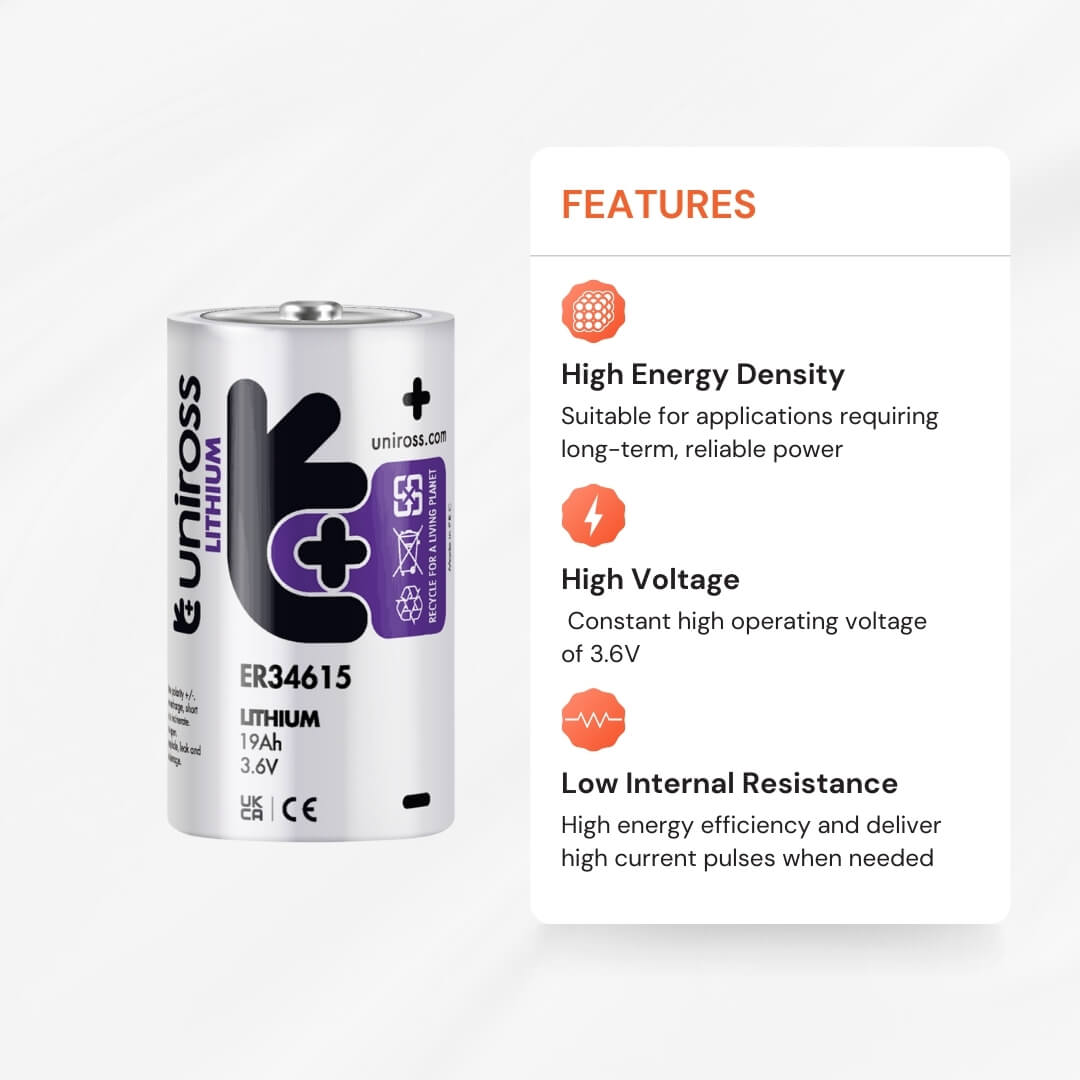

Product Features

Highest capacity single Li/SOCl₂ cylindrical cell
19,000 mAh nominal capacity (rated at 3 mA discharge to 2V cutoff) in the standard D-cell format; replaces multi-cell primary packs in high-capacity remote power applications and delivers the longest unattended runtime in a single-cell configuration.
Power-optimised for intensive remote applications
Designed for higher-drain deployments than typical bobbin-type Li/SOCl₂ cells; continuous and pulse ratings accommodate demanding telemetry systems, wireless gateways, and infrastructure monitoring nodes with frequent or data-intensive transmission cycles.

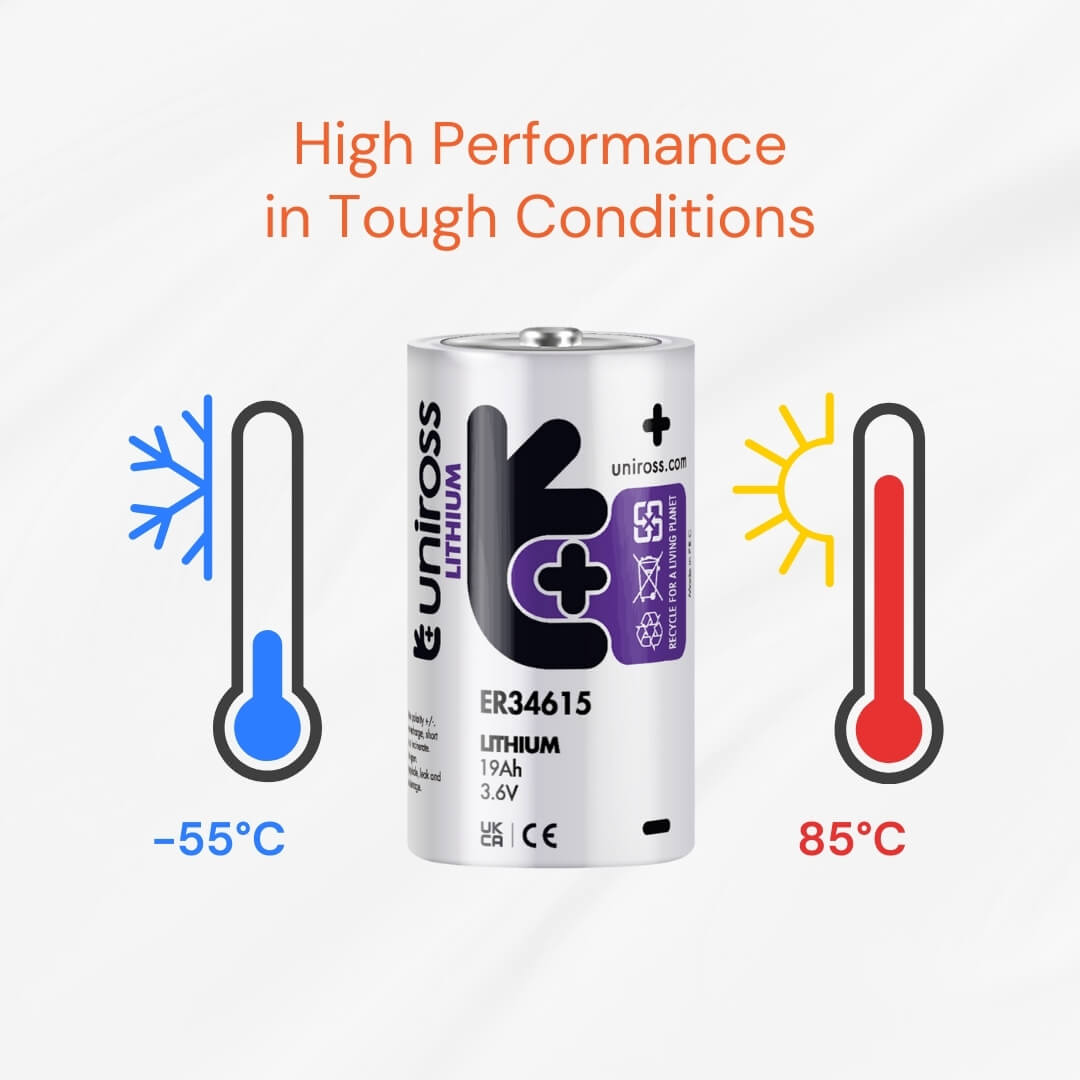

Extreme-environment ready
Full capacity and voltage performance maintained across the complete industrial temperature range from arctic cold to desert heat; suited to substation monitoring, pipeline instrumentation, and remote environmental sensors where alkaline and lithium manganese chemistries cannot meet service temperature requirements.

Technical Details

Nominal Voltage (V) 3.6V
Nominal Capacity (mAh) 19000 mAh
Standard Current (mA) 3 mA
Continuous Current (Max)( mA) 150 mA
Pulse Current (Max)(mA) 300 mA
Max Dimensions (mm) Ø 34.2 x 61.5
Weight Approx (g) 105 g
Shelf life 10 Years
Chemistry Lithium Thionyl Chloride (Li/SOCl2)
