Best-in-Class Energy Density: Delivers over $620~Wh/kg$, providing more power per gram than standard chemical batteries.
Extreme Temperature Resilience: Guaranteed to operate consistently in harsh environments ranging from –55°C to +85°C.

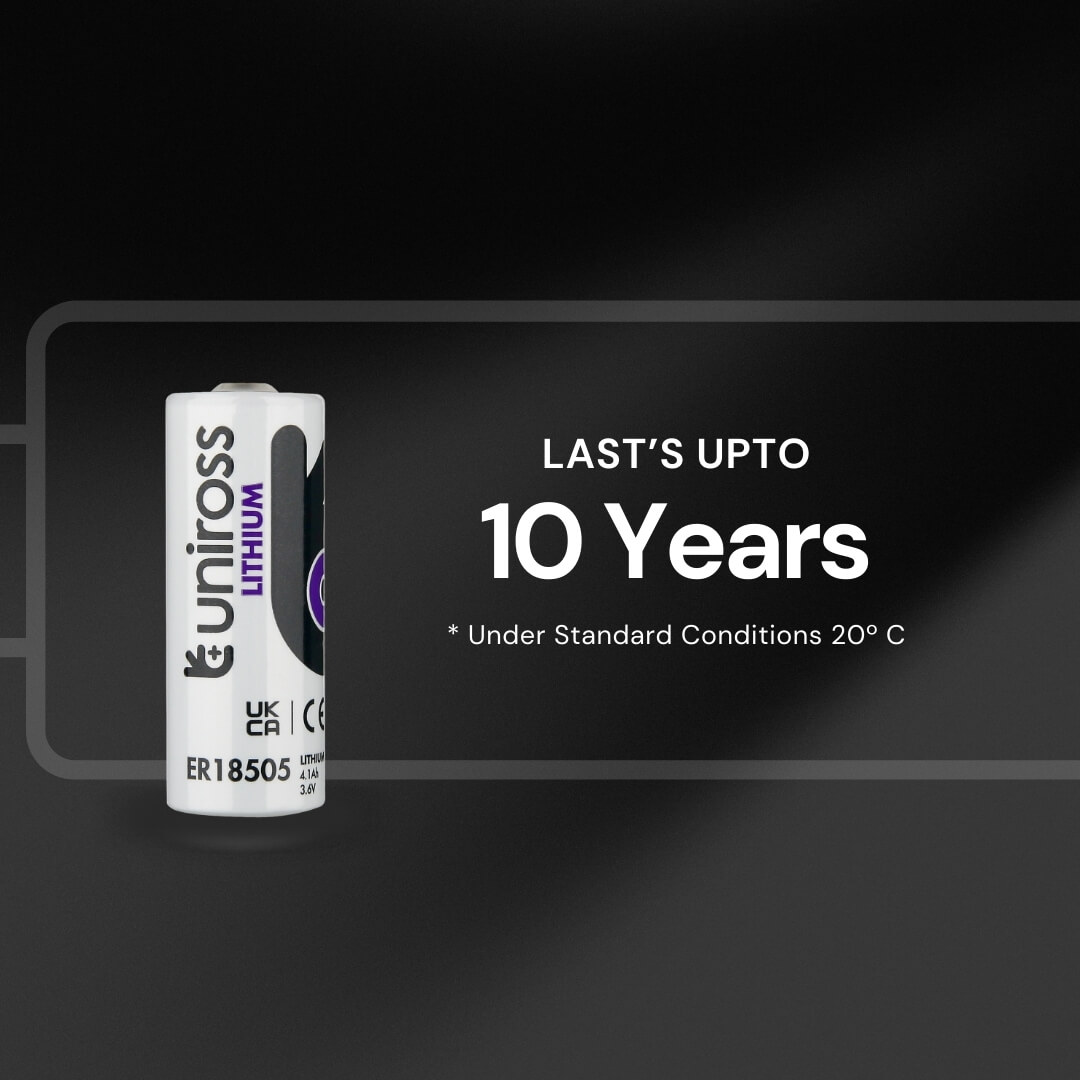

10-Year Service Life: An ultra-low self-discharge rate allows for a shelf life and operational life of 10+ years at room temperature.

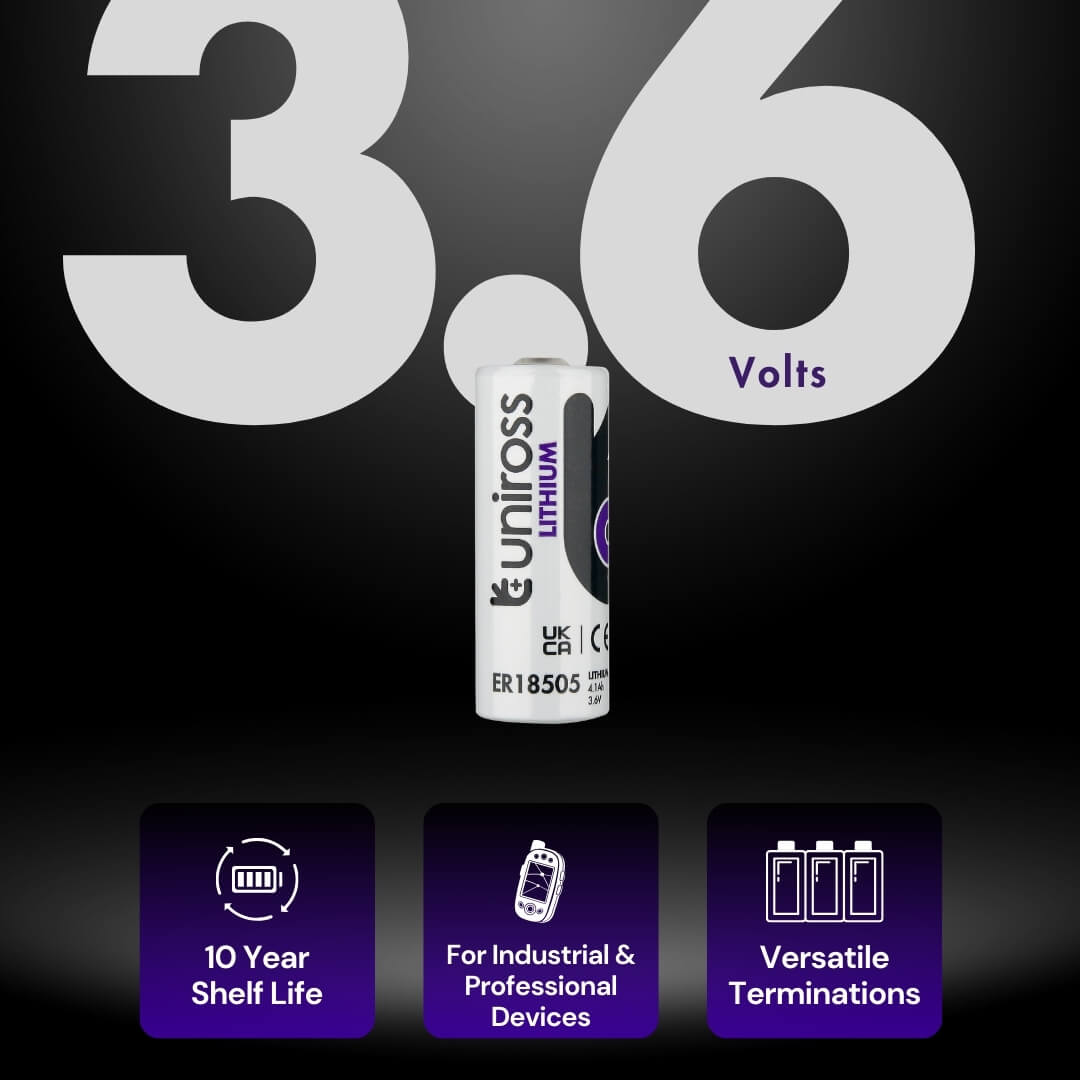

High Operating Voltage: Maintains a high and steady open-circuit voltage (≥ 3.65 V) with a consistent operating range of 3.3V–3.6V.
Industrial Termination Flexibility: Available in Standard (S), Solder Tabs (T), or Axial Pins (P), with customizable terminations available for specific industrial assemblies.
| Nominal Voltage (V) | 3.6V |
|---|---|
| Nominal Capacity (mAh) | 4100 mAh |
| Standard Current (mA) | 2 mA |
| Continuous Current (Max)( mA) | 80 mA |
| Pulse Current (Max) (mA) | 150 mA |
| Max Dimensions (mm) | Ø 18.5 x 50.5 |
| Weight Approx (g) | 29 g |
| Chemistry | Lithium Thionyl Chloride (Li-SOCl2) |
