Uniross ML1220 lithium-aluminium rechargeable coin cells deliver 18 mAh at 3V in a compact 12.5mm diameter, 2.0mm profile. Designed for OEM applications where a coin cell housing is fixed by mechanical design and the circuit includes a charging provision, the ML1220 replaces a non-rechargeable primary with a cell rated for up to 300 charge/discharge cycles at 10% depth of discharge — reducing field service requirements and total battery cost over the product lifecycle. Operates reliably from -20°C to +60°C and available in bulk quantities from European stock.
| Battery Type | ML1220 |
|---|---|
| Chemistry | Lithium Aluminium (Li-Al) |
| Nominal Voltage (V) | 3V |
| Nominal Capacity (mAh) | 18 mAh |
| Standard Current (mA) | 0.1 mA |
| Charge/discharge Cycle | 300 (10%DOD) / 120 (20%DOD) |
| Max Dimensions (mm) | ø12.5 x 2.0 mm |
| Weight Approx (g) | 0.8 g |

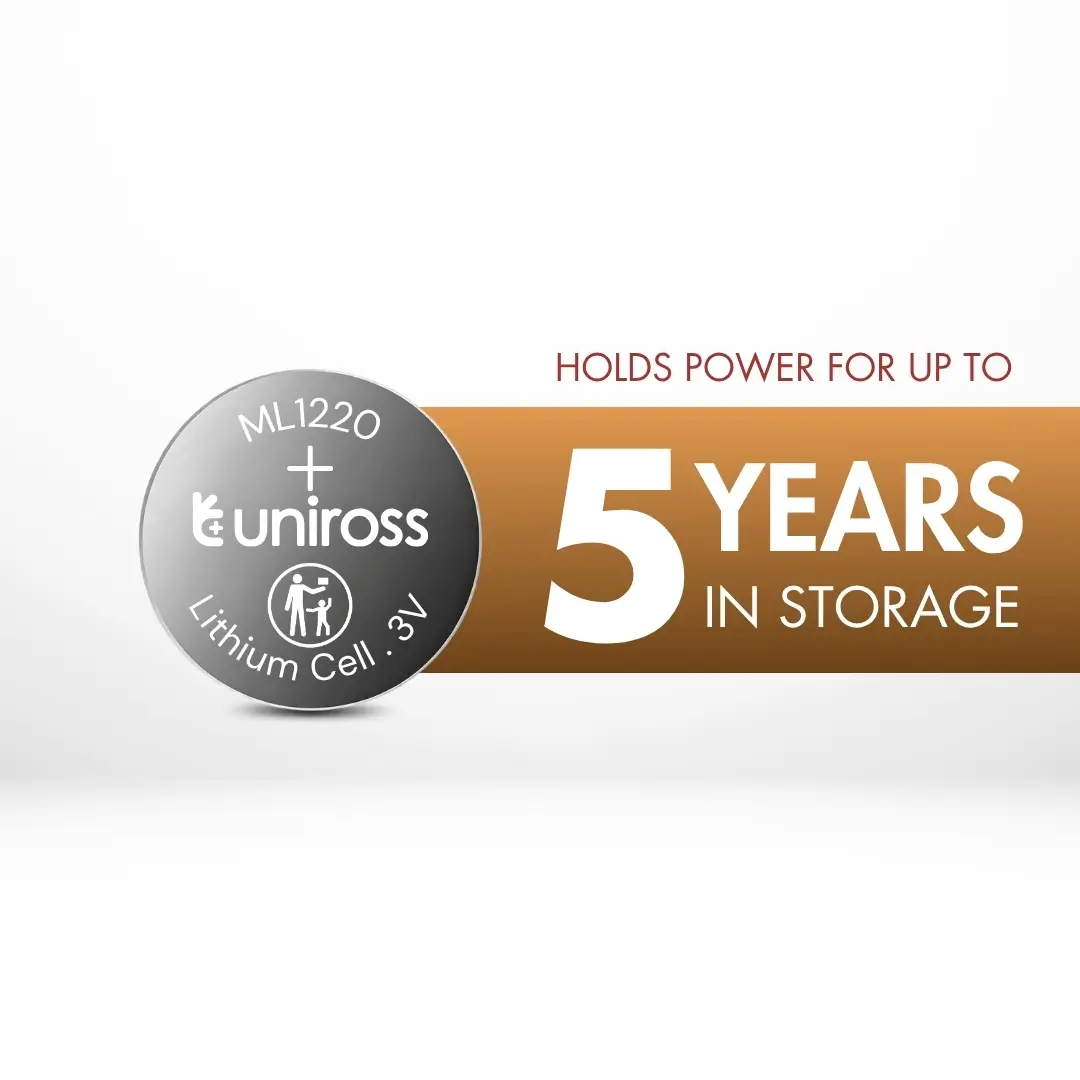

| Shelf life | 5 Years |
| Working Temperature (℃) | -20°C to +60°C |
