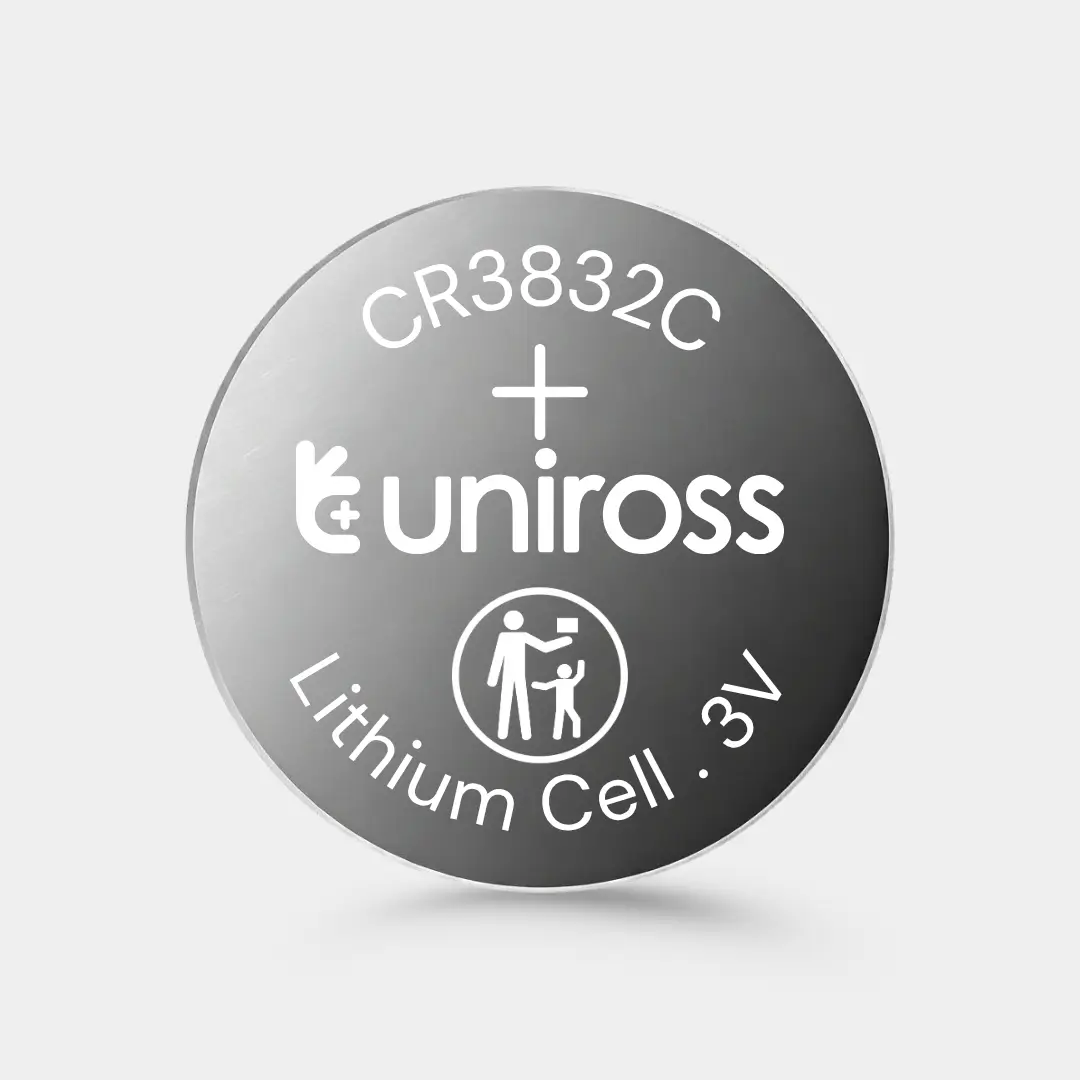

Uniross CR3832C lithium coin cells deliver 850 mAh at 3V in a 38mm diameter, 3.2mm profile — the largest and highest-current cell in the Uniross CR S Type range. With 20 mA continuous and 75 mA pulse, the CR3832C is designed for applications where a flat coin cell format is mechanically required but current demands exceed every other cell in the range: industrial wireless devices with power-intensive transmit cycles, electronic locks with motor drives, and high-drain medical or diagnostic equipment where moving to a cylindrical primary battery is not viable. Available in bulk from European stock for OEM and volume procurement.
| Battery Type | CR3832C |
|---|---|
| Chemistry | Lithium Manganese Dioxide (Li-MnO₂) |
| Nominal Voltage (V) | 3V |
| Typical Capacity (mAh) | 850 mAh |
| Continuous Current (Max)( mA) | 20 mA |
| Pulse Current (Max) (mA) | 75 mA |
| Max Dimensions (mm) | ø38.0 x 3.2 mm |
| Weight Approx (g) | 11.0 g |
| Shelf life | 5 Years |
| Working Temperature (°C) | -20°C to +60°C |
