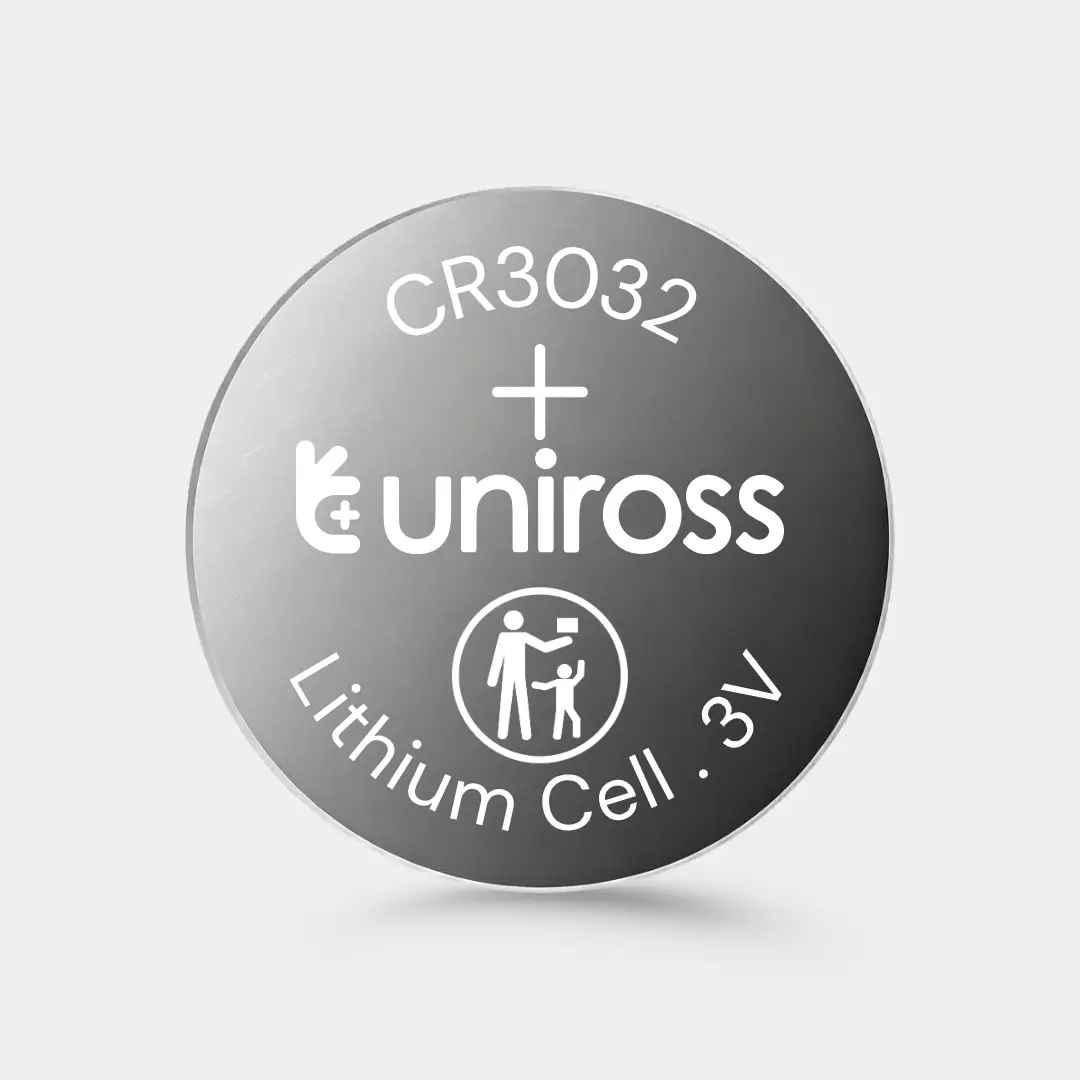

Uniross CR3032 lithium coin cells deliver 500 mAh at 3V in a 30mm diameter, 3.2mm profile. The larger 30mm footprint enables significantly higher current ratings — 10 mA continuous and 30 mA pulse — making the CR3032 the specification of choice when current demand has exceeded the capability of 24.5mm cells and a flat coin cell format must be retained. It is used in demanding cellular IoT applications, motorised access control systems, and industrial wireless equipment where high peak currents are required alongside a substantial energy reserve in a flat-disc housing.
| Battery Type | CR3032 |
|---|---|
| Chemistry | Lithium Manganese Dioxide (Li-MnO₂) |
| Nominal Voltage (V) | 3V |
| Typical Capacity (mAh) | 500 mAh |
| Continuous Current (Max)( mA) | 10 mA |
| Pulse Current (Max) (mA) | 30 mA |
| Max Dimensions (mm) | ø30.0 x 3.2 mm |
| Weight Approx (g) | 6.8 g |
| Shelf life | 5 Years |
| Working Temperature (°C) | -20°C to +60°C |
