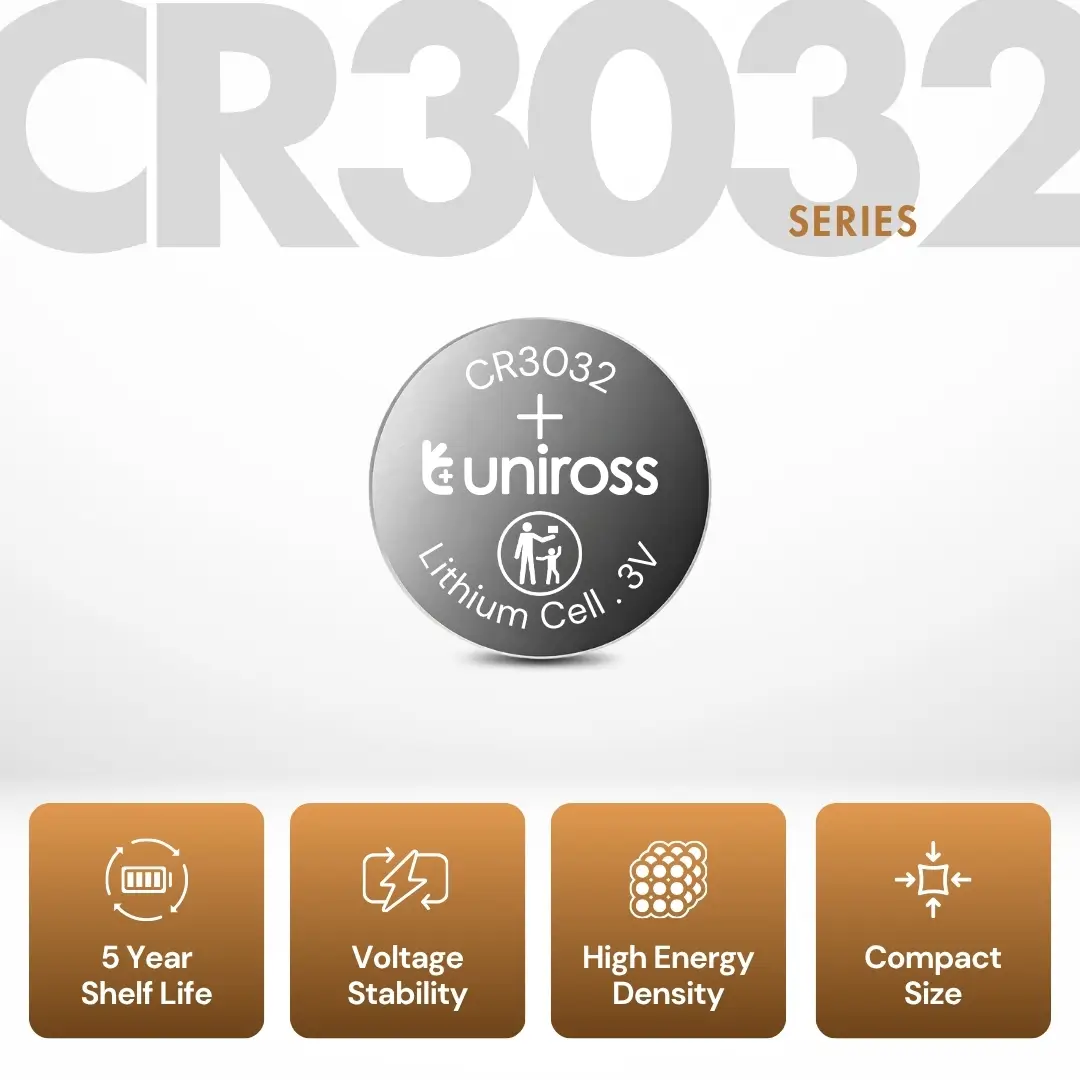

The Uniross CR3032 HP delivers 550 mAh at a stable 3V in a 30mm diameter, 3.2mm profile, stepping into the higher current class with 10 mA continuous and 35 mA pulse ratings. The larger 30mm footprint provides substantially increased electrode area, enabling both the higher capacity and the elevated current performance that characterise this cell. The CR3032 HP is specified for demanding industrial wireless applications, advanced medical devices, and high-current IoT infrastructure where the 20mm and 24mm formats cannot meet the combined capacity and current requirements.
| battery-type | CR3032 |
|---|---|
| chemistry | Lithium Manganese Dioxide (Li-MnO₂) |
| nominal-voltage-v | 3 |
| typical-capacity-mah | 550 |
| standard-current-ma | 0.4 |
| continuous-current-max-ma | 10 |
| pulse-current-max-ma | 35 |
| max-dimensions-mm | ø30.0 x 3.2 mm |
| weight-approx-g | 6.9 |
| shelf-life | 10 Years |
| working-temperature-c | -20°C to +60°C |
