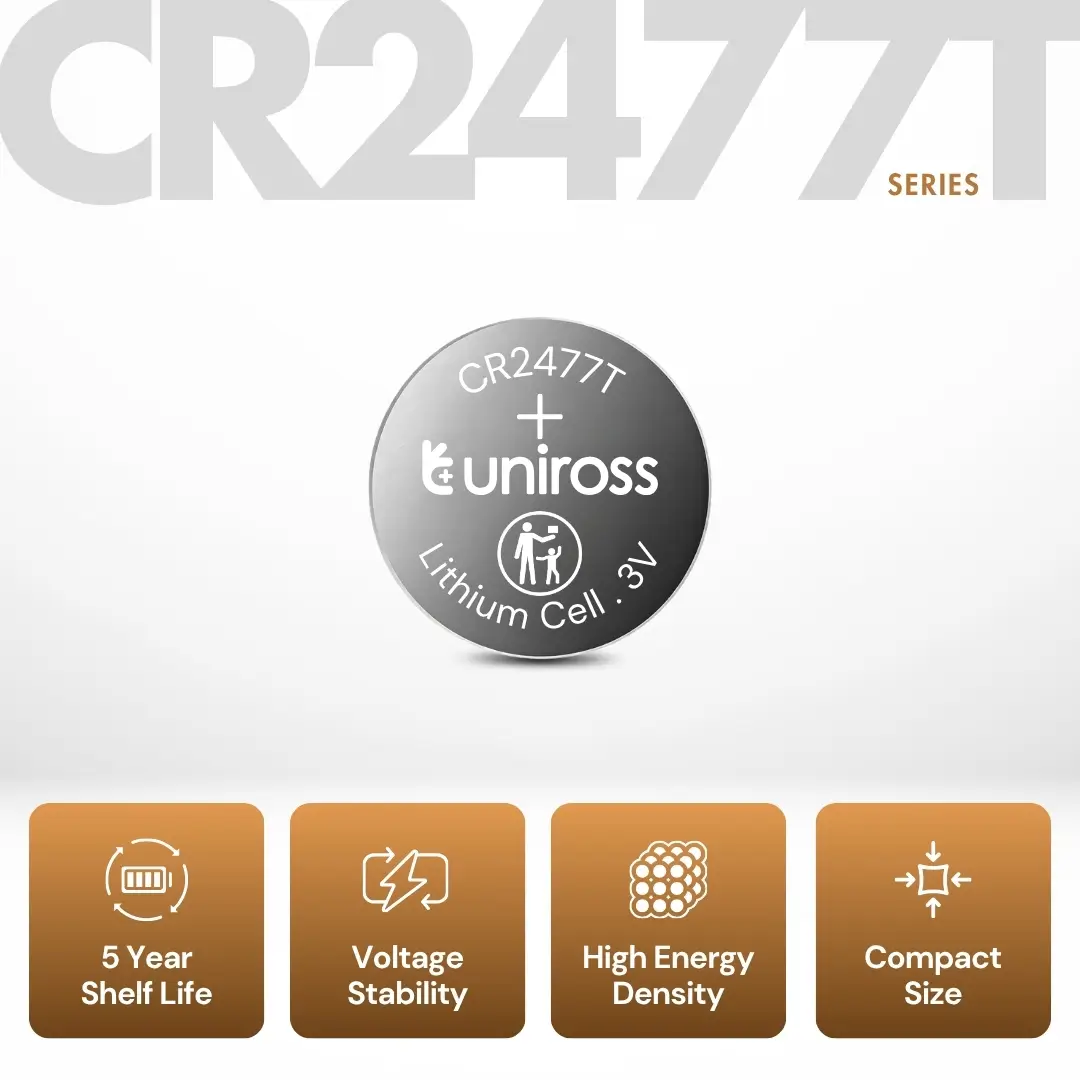

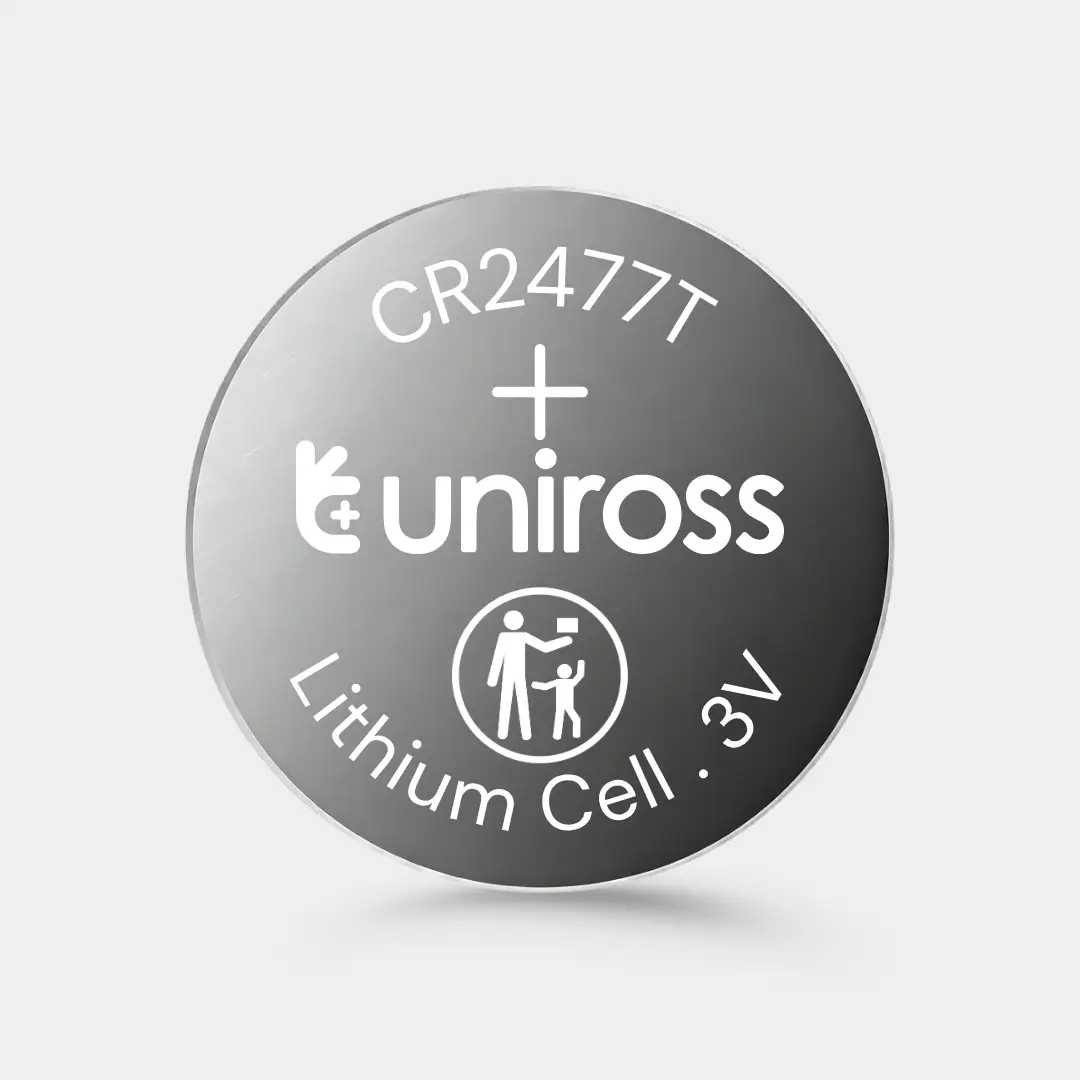

The Uniross CR2477T HT is the highest capacity cell in the 24.5mm HT family and one of the most capable cells in the entire HT range, delivering 1000 mAh at a stable 3V in a 24.5mm diameter, 7.7mm profile. The tall 7.7mm height provides an electrode stack that delivers 1 Ah — the benchmark capacity for long-life industrial and infrastructure coin cells — with 8 mA continuous and 25 mA pulse ratings and the full -30°C to +80°C HT operating range. For demanding wireless infrastructure where multi-year battery life in high-temperature environments is a non-negotiable design requirement, the CR2477T HT is the definitive specification in the 24.5mm format.
| Battery Type | CR2477T |
|---|---|
| Chemistry | Lithium Manganese Dioxide (Li-MnO₂) |
| Nominal Voltage (V) | 3 |
| Typical Capacity (mAh) | 1000 |
| Standard Current (mA) | 0.6 |
| Continuous Current (Max)( mA) | 8 |
| Pulse Current (Max) (mA) | 25 |
| Max Dimensions (mm) | ø24.5 x 7.7 mm |
| Weight Approx (g) | 10.5 |
| Shelf life | 7 Years |
| Working Temperature (°C) | -30°C to +80°C |
