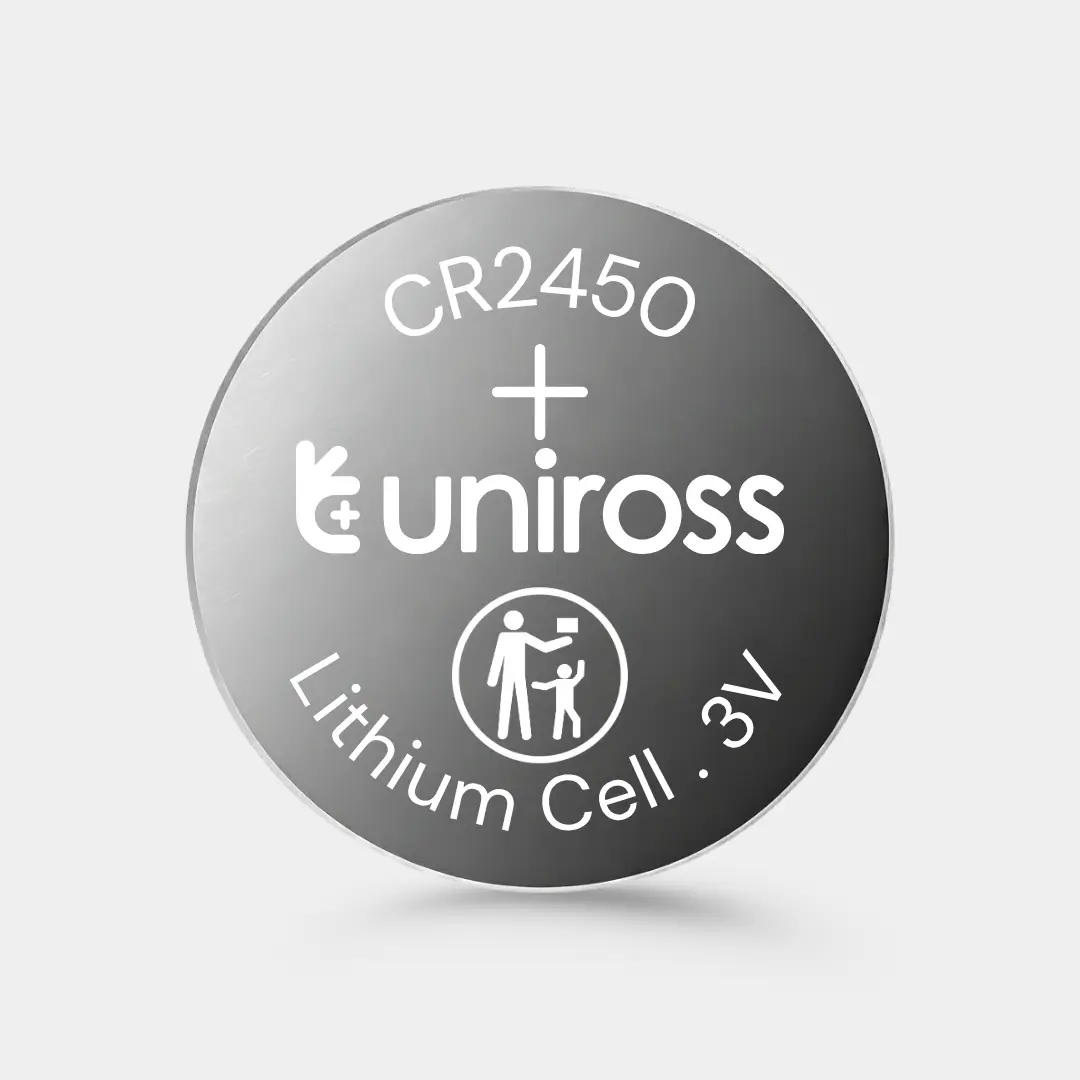

Uniross CR2450 lithium coin cells deliver 600 mAh at 3V in a 24.5mm diameter, 5.0mm profile — one of the highest-capacity standard coin cells available in the 3V lithium range. Rated at 7 mA continuous and 25 mA pulse, the CR2450 is specified for applications requiring both high energy density and significant current drive within a flat-form housing. It is a primary choice for long-lifecycle cellular IoT infrastructure, GPS tracking equipment, and industrial monitoring devices where battery replacement must be minimised and multi-year service intervals are a procurement and operational requirement.
| Battery Type | CR2450 |
|---|---|
| Chemistry | Lithium Manganese Dioxide (Li-MnO₂) |
| Nominal Voltage (V) | 3V |
| Typical Capacity (mAh) | 600 mAh |
| Continuous Current (Max)( mA) | 7 mA |
| Pulse Current (Max) (mA) | 25 mA |
| Max Dimensions (mm) | ø24.5 x 5.0 mm |
| Weight Approx (g) | 6.8 g |
| Shelf life | 5 Years |
| Working Temperature (°C) | -20°C to +60°C |
