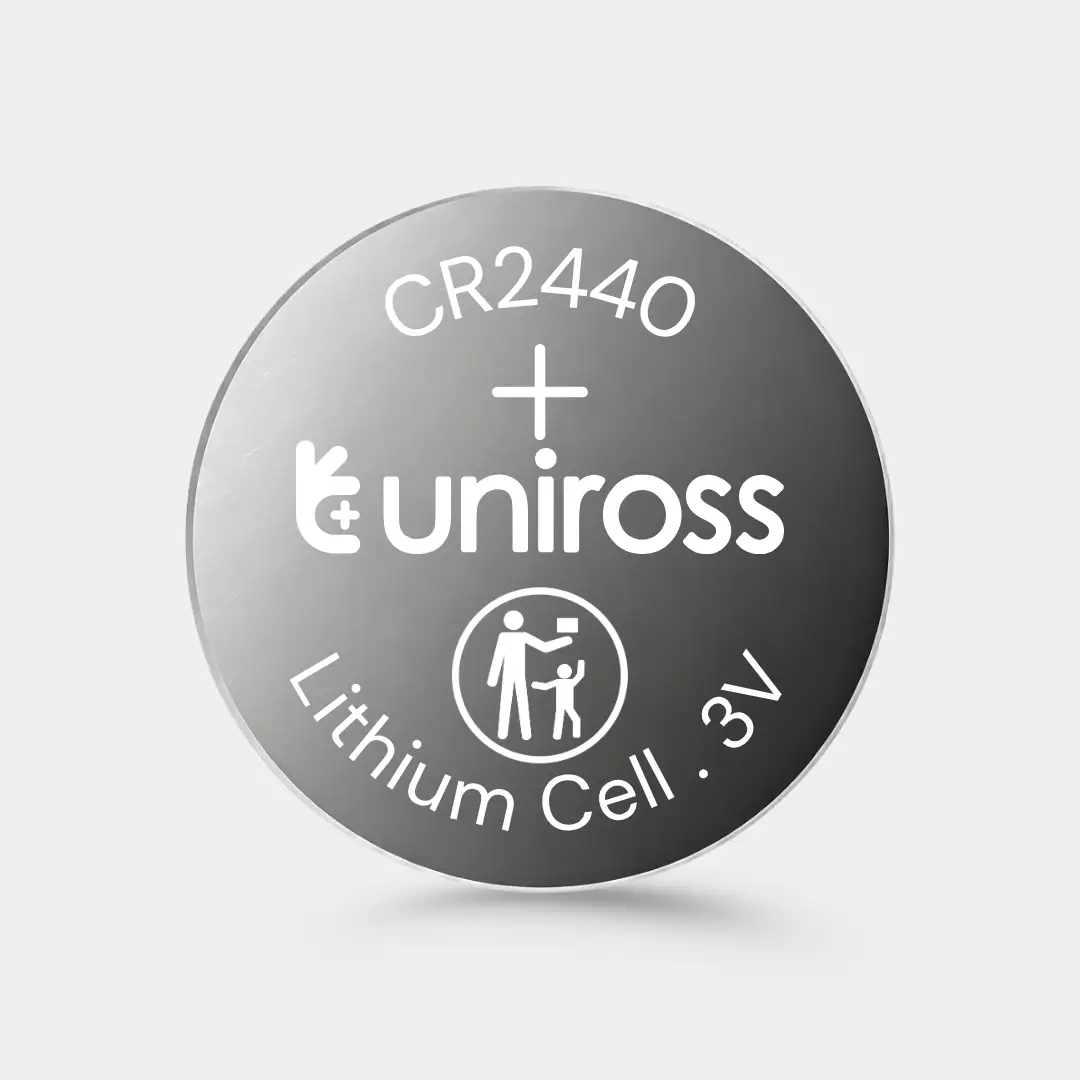

Uniross CR2440 lithium coin cells deliver 480 mAh at 3V in a 24.5mm diameter, 4.0mm profile — 78% more capacity than the CR2430 within the same footprint, with identical current ratings of 7 mA continuous and 25 mA pulse. For applications using the 24.5mm battery housing where height permits 4.0mm and multi-year runtime is a primary design requirement, the CR2440 is the preferred specification. It is widely used in GPS tracking, cellular IoT, and long-lifecycle industrial monitoring equipment where battery replacement must be minimised to reduce operational and maintenance cost.
| Battery Type | CR2440 |
|---|---|
| Chemistry | Lithium Manganese Dioxide (Li-MnO₂) |
| Nominal Voltage (V) | 3V |
| Typical Capacity (mAh) | 480 mAh |
| Continuous Current (Max)( mA) | 7 mA |
| Pulse Current (Max) (mA) | 25 mA |
| Max Dimensions (mm) | ø24.5 x 4.0 mm |
| Weight Approx (g) | 5.4 g |
| Shelf life | 5 Years |
| Working Temperature (°C) | -20°C to +60°C |
