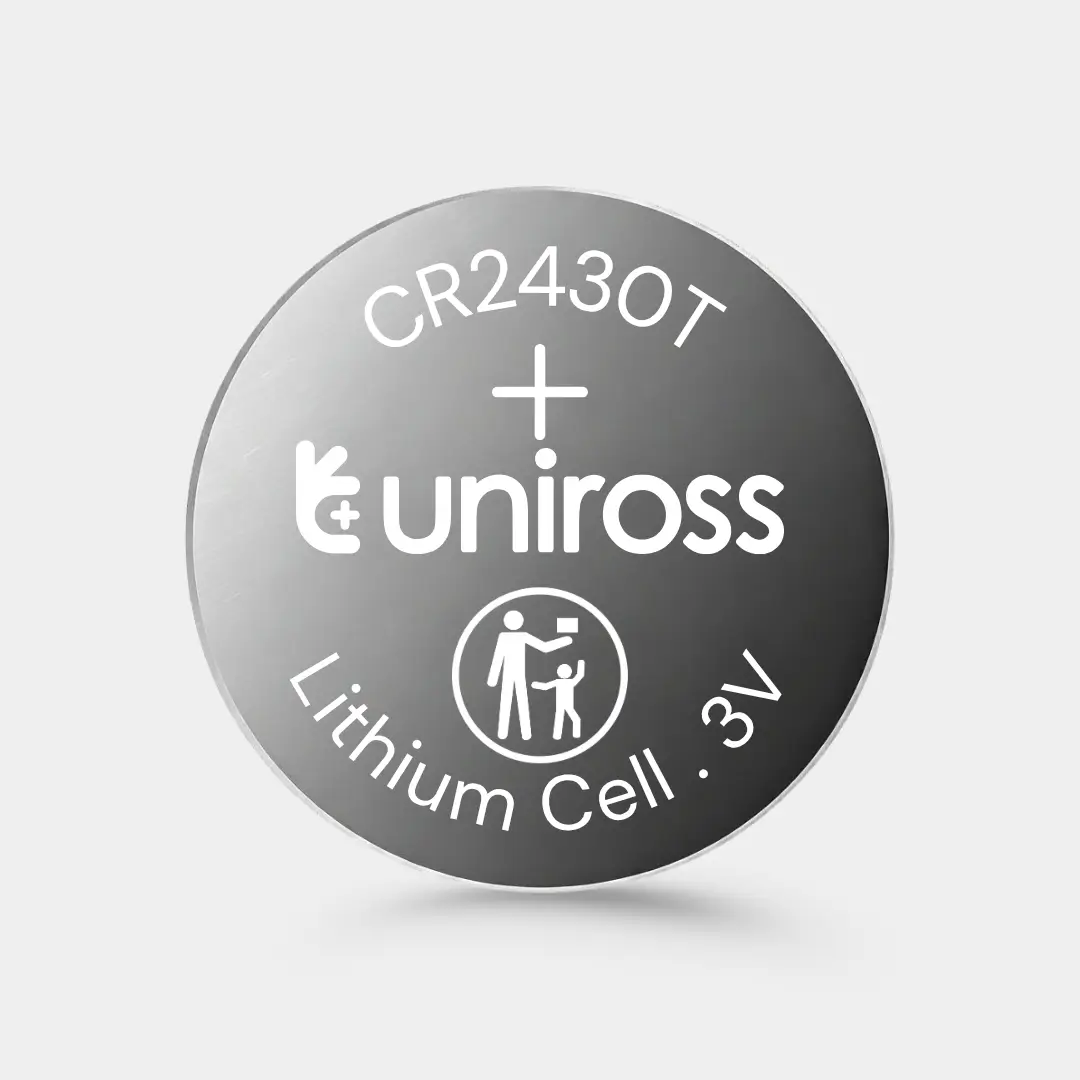

The Uniross CR2430T HT delivers 270 mAh at a stable 3V in the 24.5mm diameter, 3.0mm profile — the entry point to the 24.5mm HT family and its higher current class of 8 mA continuous and 25 mA pulse. The larger 24.5mm electrode area provides the additional current headroom for medical monitoring, industrial telemetry, and smart metering applications that operate in high-temperature environments and require more peak current than the 23mm family can provide.
| Battery Type | CR2430T |
|---|---|
| Chemistry | Lithium Manganese Dioxide (Li-MnO₂) |
| Nominal Voltage (V) | 3 |
| Typical Capacity (mAh) | 270 |
| Standard Current (mA) | 0.2 |
| Continuous Current (Max)( mA) | 8 |
| Pulse Current (Max) (mA) | 25 |
| Max Dimensions (mm) | ø24.5 x 3.0 mm |
| Weight Approx (g) | 4.5 |
| Shelf life | 7 Years |
| Working Temperature (°C) | -30°C to +80°C |
