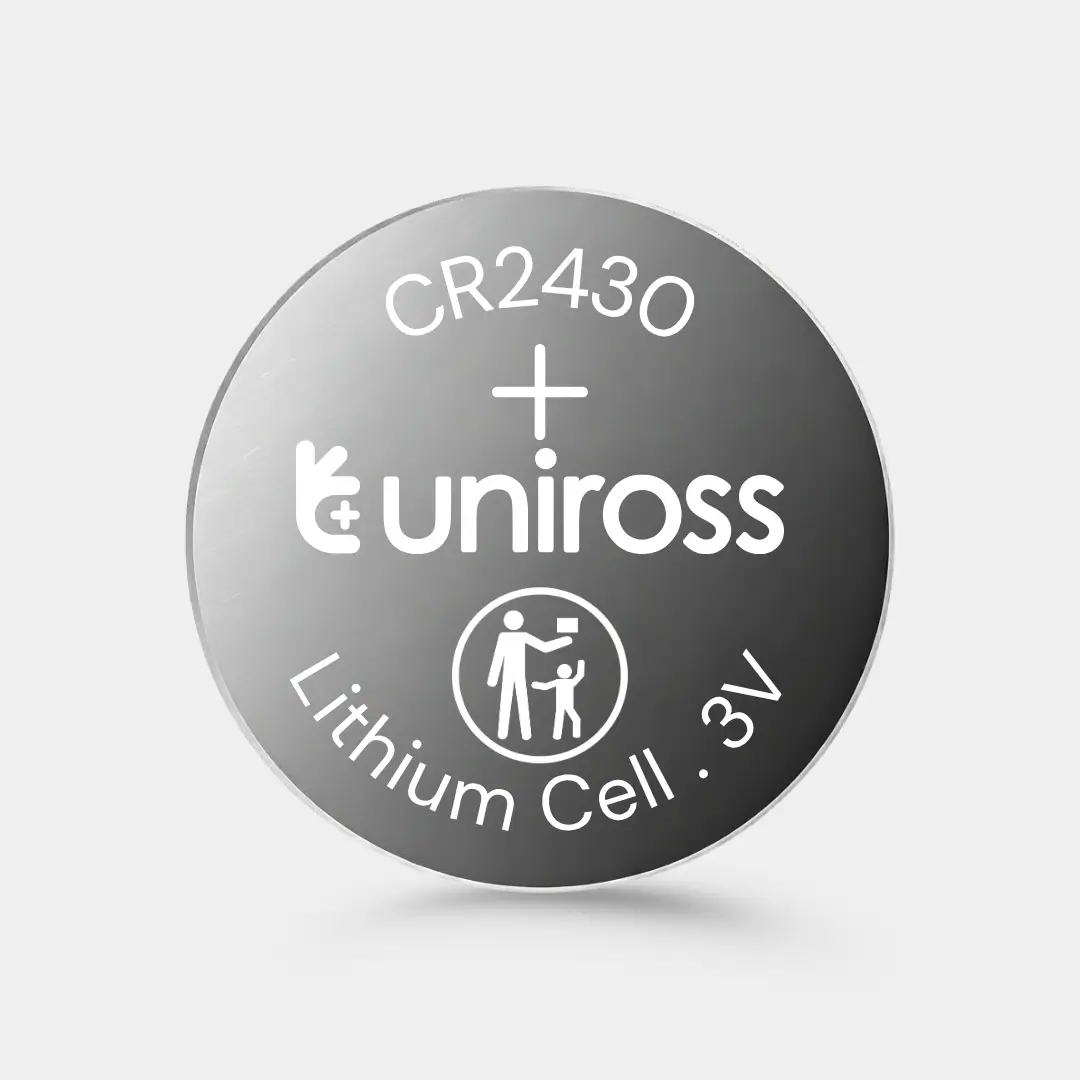

Uniross CR2430 lithium coin cells deliver 270 mAh at 3V in a 24.5mm diameter, 3.0mm profile. The step to the 24.5mm footprint brings higher current ratings — 7 mA continuous and 25 mA pulse — making the CR2430 the preferred specification for applications that have outgrown the current capability of the 23mm series. It is a strong choice for GPS tracking devices, cellular IoT terminals, and industrial wireless equipment where higher transmission currents must be sustained within a flat coin cell format without moving to cylindrical primary cells.
| Battery Type | CR2430 |
|---|---|
| Chemistry | Lithium Manganese Dioxide (Li-MnO₂) |
| Nominal Voltage (V) | 3V |
| Typical Capacity (mAh) | 270 mAh |
| Continuous Current (Max)( mA) | 7 mA |
| Pulse Current (Max) (mA) | 25 mA |
| Max Dimensions (mm) | ø24.5 x 3.0 mm |
| Weight Approx (g) | 4.5 g |
| Shelf life | 5 Years |
| Working Temperature (°C) | -20°C to +60°C |
