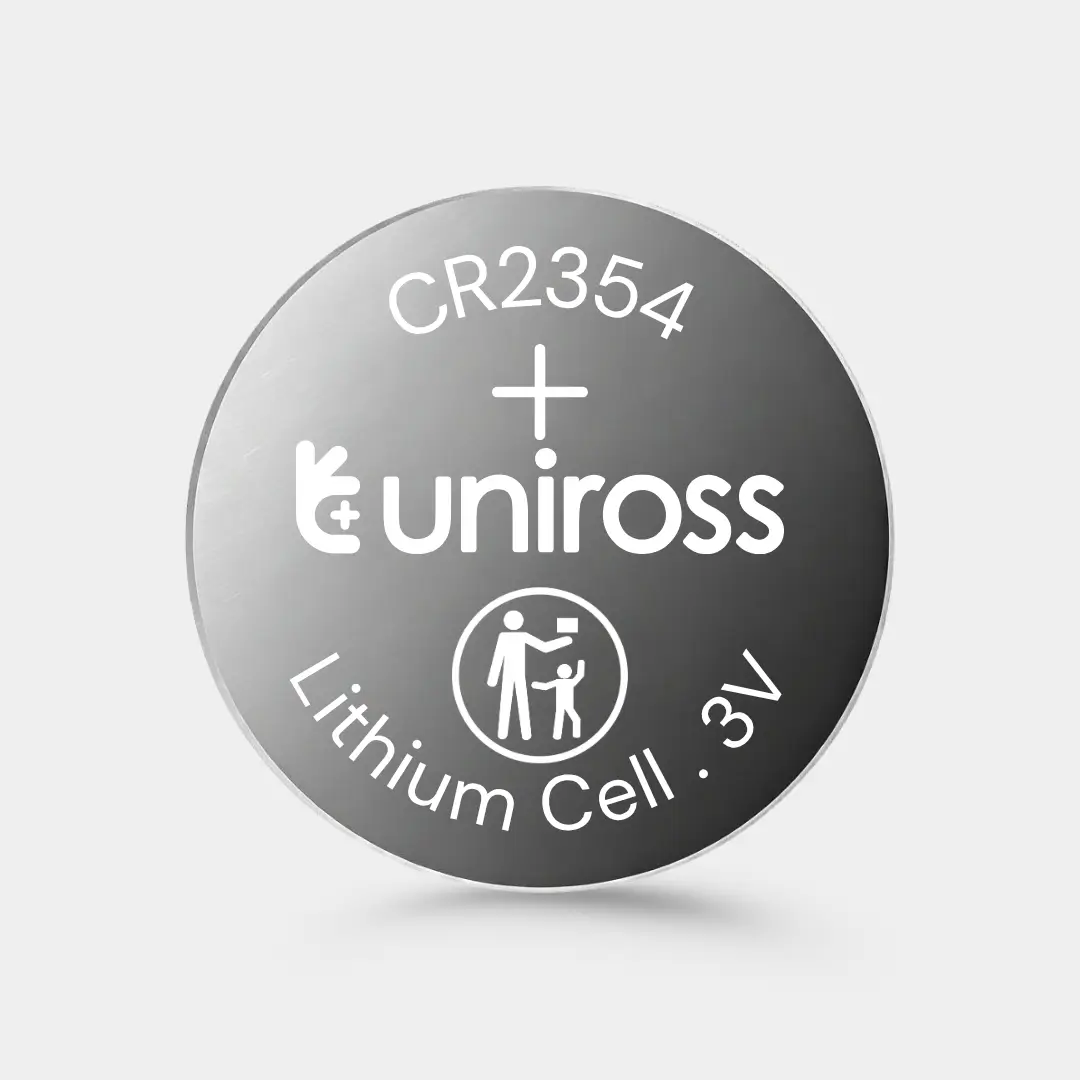

Uniross CR2354 lithium coin cells deliver 560 mAh at 3V in a 23mm diameter, 5.4mm profile — 87% more capacity than the CR2335 within the same footprint diameter, at the cost of increased cell height. When housing geometry permits 5.4mm and multi-year battery life is the overriding design objective within the 23mm family, the CR2354 is the specification of choice. Rated at 6 mA continuous and 20 mA pulse, it suits long-lifecycle IoT infrastructure, remote monitoring, and wireless industrial equipment where battery replacement must be minimised to reduce operational cost.
| Battery Type | CR2354 |
|---|---|
| Chemistry | Lithium Manganese Dioxide (Li-MnO₂) |
| Nominal Voltage (V) | 3V |
| Typical Capacity (mAh) | 560 mAh |
| Continuous Current (Max)( mA) | 6 mA |
| Pulse Current (Max) (mA) | 20 mA |
| Max Dimensions (mm) | ø23.0 x 5.4 mm |
| Weight Approx (g) | 6.9 g |
| Shelf life | 5 Years |
| Working Temperature (°C) | -20°C to +60°C |
