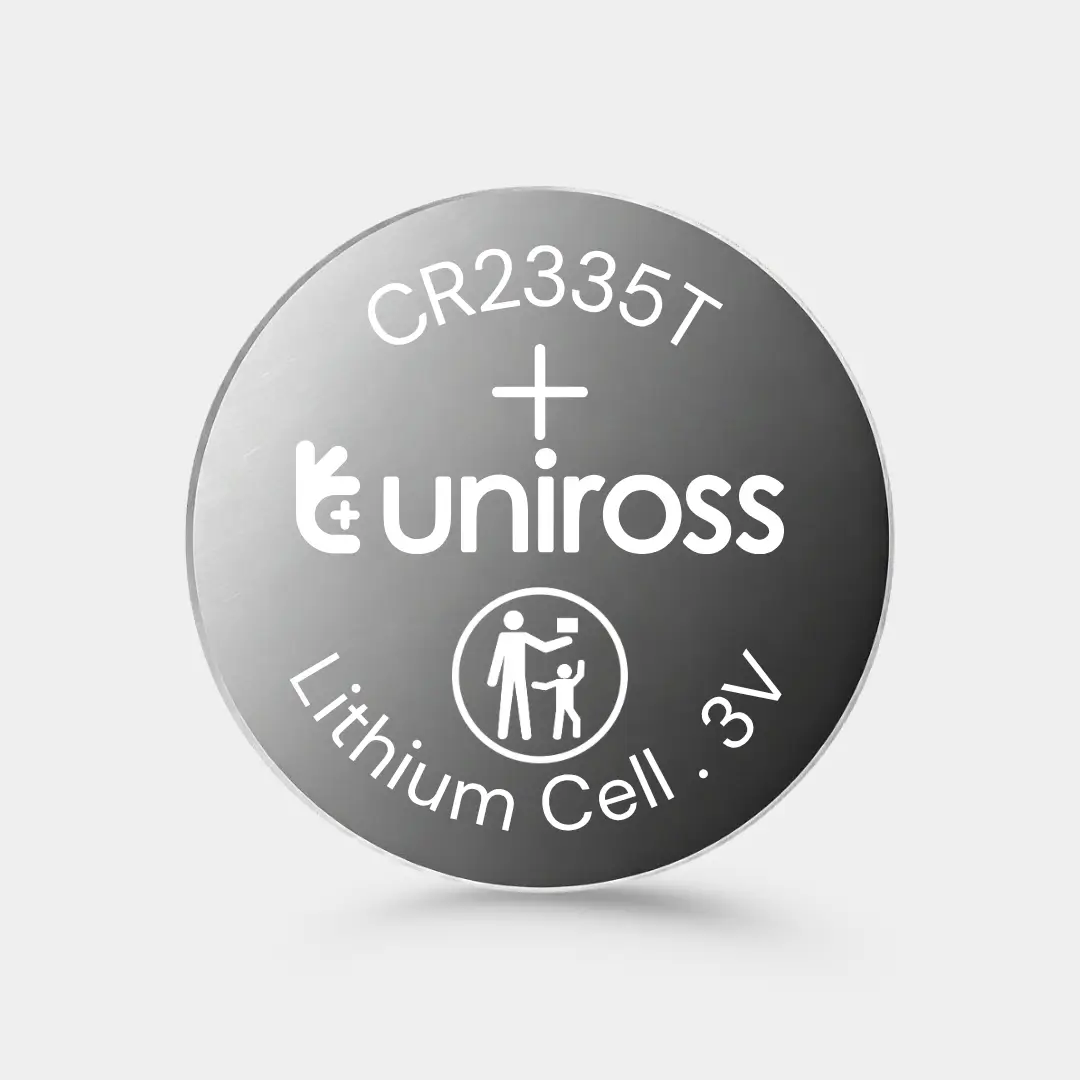

The Uniross CR2335T HT delivers 300 mAh at a stable 3V in the 23mm diameter, 3.5mm profile — the highest-capacity standard-height cell in the 23mm HT family. The 3.5mm depth maximises the electrode area available within common 23mm device housings, delivering 300 mAh with 6 mA continuous and 20 mA pulse ratings and the full -30°C to +80°C HT operating range. The CR2335T HT is the first-choice specification for 23mm applications where runtime is the primary constraint alongside temperature qualification.
| Battery Type | CR2335T |
|---|---|
| Chemistry | Lithium Manganese Dioxide (Li-MnO₂) |
| Nominal Voltage (V) | 3 |
| Typical Capacity (mAh) | 300 |
| Standard Current (mA) | 0.2 |
| Continuous Current (Max)( mA) | 6 |
| Pulse Current (Max) (mA) | 20 |
| Max Dimensions (mm) | ø23.0 x 3.5 mm |
| Weight Approx (g) | 4.3 |
| Shelf life | 7 Years |
| Working Temperature (°C) | -30°C to +80°C |
