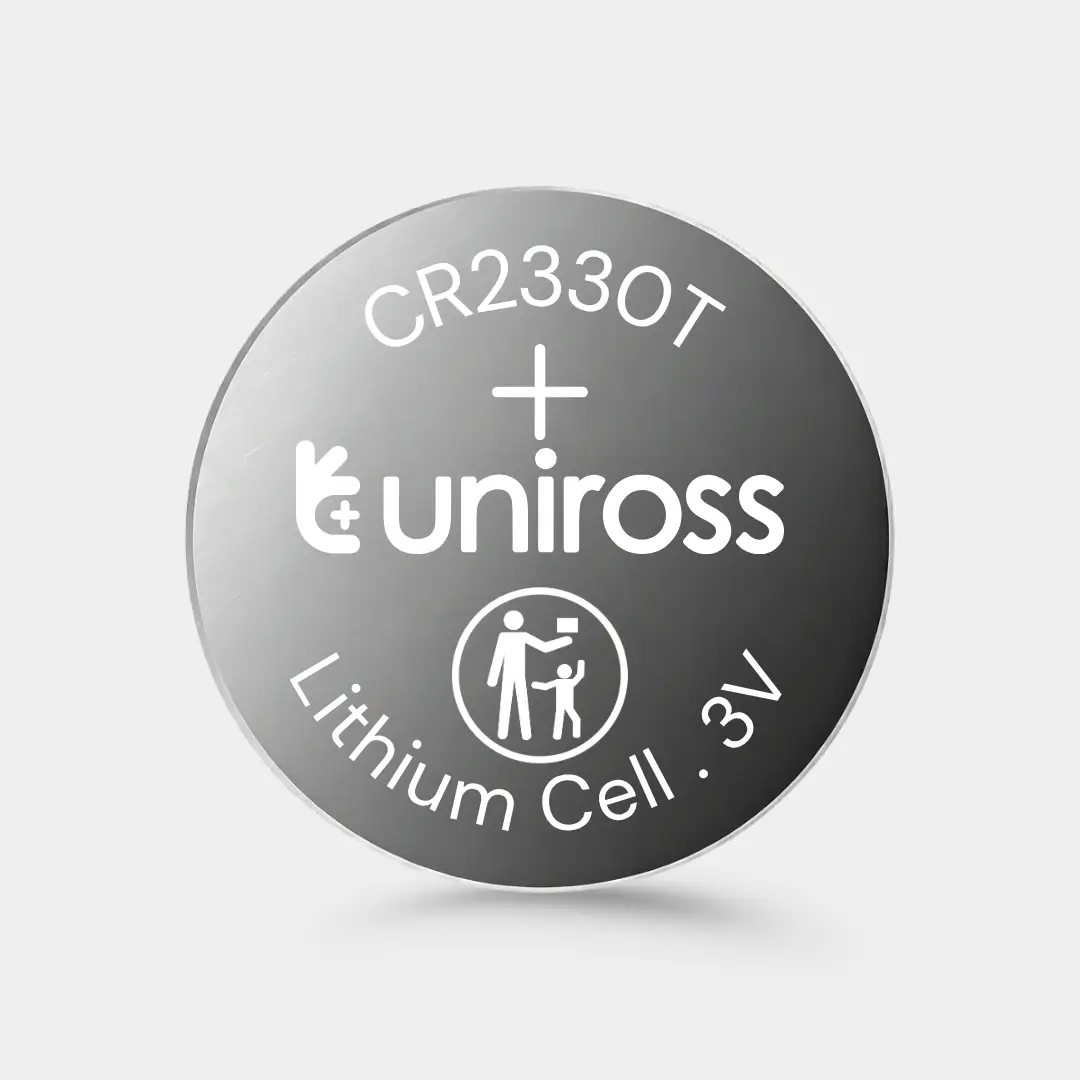

The Uniross CR2330T HT delivers 260 mAh at a stable 3V in the 23mm diameter, 3.0mm profile. The 3.0mm height strikes a practical balance within the 23mm HT family — substantially more capacity than the CR2325T HT while stopping short of the full 3.5mm of the CR2335T. With 6 mA continuous and 20 mA pulse ratings and a -30°C to +80°C operating range, the CR2330T HT is well suited to industrial IoT and smart metering applications where the 23mm format is the housing standard.
| Battery Type | CR2330T |
|---|---|
| Chemistry | Lithium Manganese Dioxide (Li-MnO₂) |
| Nominal Voltage (V) | 3 |
| Typical Capacity (mAh) | 260 |
| Standard Current (mA) | 0.2 |
| Continuous Current (Max)( mA) | 6 |
| Pulse Current (Max) (mA) | 20 |
| Max Dimensions (mm) | ø23.0 x 3.0 mm |
| Weight Approx (g) | 4.0 |
| Shelf life | 7 Years |
| Working Temperature (°C) | -30°C to +80°C |
