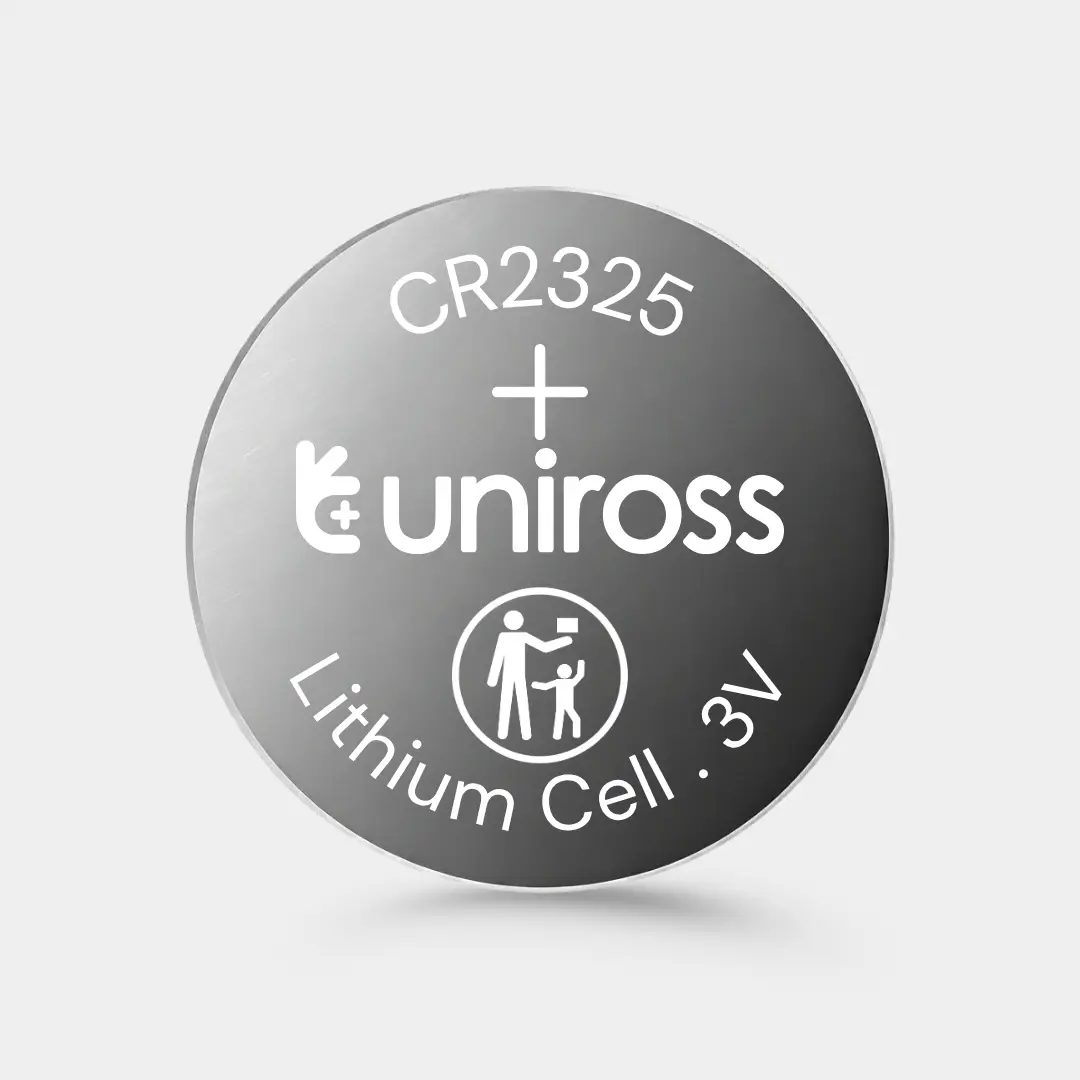

Uniross CR2325 lithium coin cells deliver 190 mAh at 3V in a 23mm diameter, 2.5mm profile — combining the elevated current capability of the 23mm series (6 mA continuous, 20 mA pulse) with a significant capacity step up over the CR2320. For industrial and infrastructure applications where both current drive and runtime are engineering requirements, the CR2325 provides the optimum balance within a 2.5mm height constraint. It is widely specified in IoT infrastructure, smart metering, and wireless industrial instrumentation.
| Battery Type | CR2325 |
|---|---|
| Chemistry | Lithium Manganese Dioxide (Li-MnO₂) |
| Nominal Voltage (V) | 3V |
| Typical Capacity (mAh) | 190 mAh |
| Continuous Current (Max)( mA) | 6 mA |
| Pulse Current (Max) (mA) | 20 mA |
| Max Dimensions (mm) | ø23.0 x 2.5 mm |
| Weight Approx (g) | 3.3 g |
| Shelf life | 5 Years |
| Working Temperature (°C) | -20°C to +60°C |
