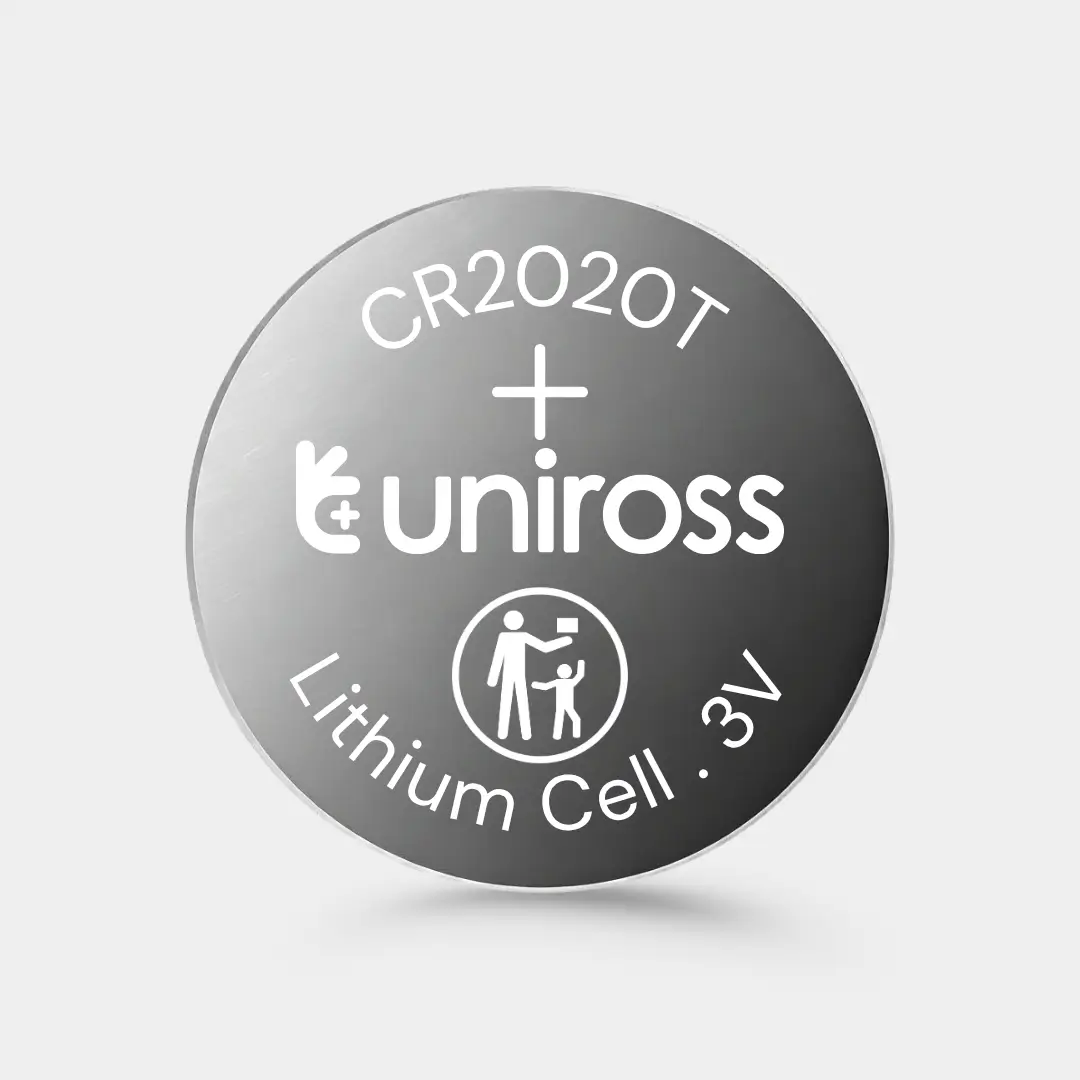

The Uniross CR2020T HT delivers 130 mAh at a stable 3V in the 20mm diameter, 2.0mm mid-profile — 63% more capacity than the CR2016T HT in a 2.0mm height that fits most standard 20mm coin cell housings. The 5 mA continuous and 15 mA pulse ratings and -30°C to +80°C HT operating range make the CR2020T HT a strong specification for automotive TPMS, outdoor IoT, and industrial wireless devices where both extended runtime and temperature qualification are required.
| Battery Type | CR2020T |
|---|---|
| Chemistry | Lithium Manganese Dioxide (Li-MnO₂) |
| Nominal Voltage (V) | 3 |
| Typical Capacity (mAh) | 130 |
| Standard Current (mA) | 0.2 |
| Continuous Current (Max)( mA) | 5 |
| Pulse Current (Max) (mA) | 15 |
| Max Dimensions (mm) | ø20.0 x 2.0 mm |
| Weight Approx (g) | 2.3 |
| Shelf life | 7 Years |
| Working Temperature (°C) | -30°C to +80°C |
