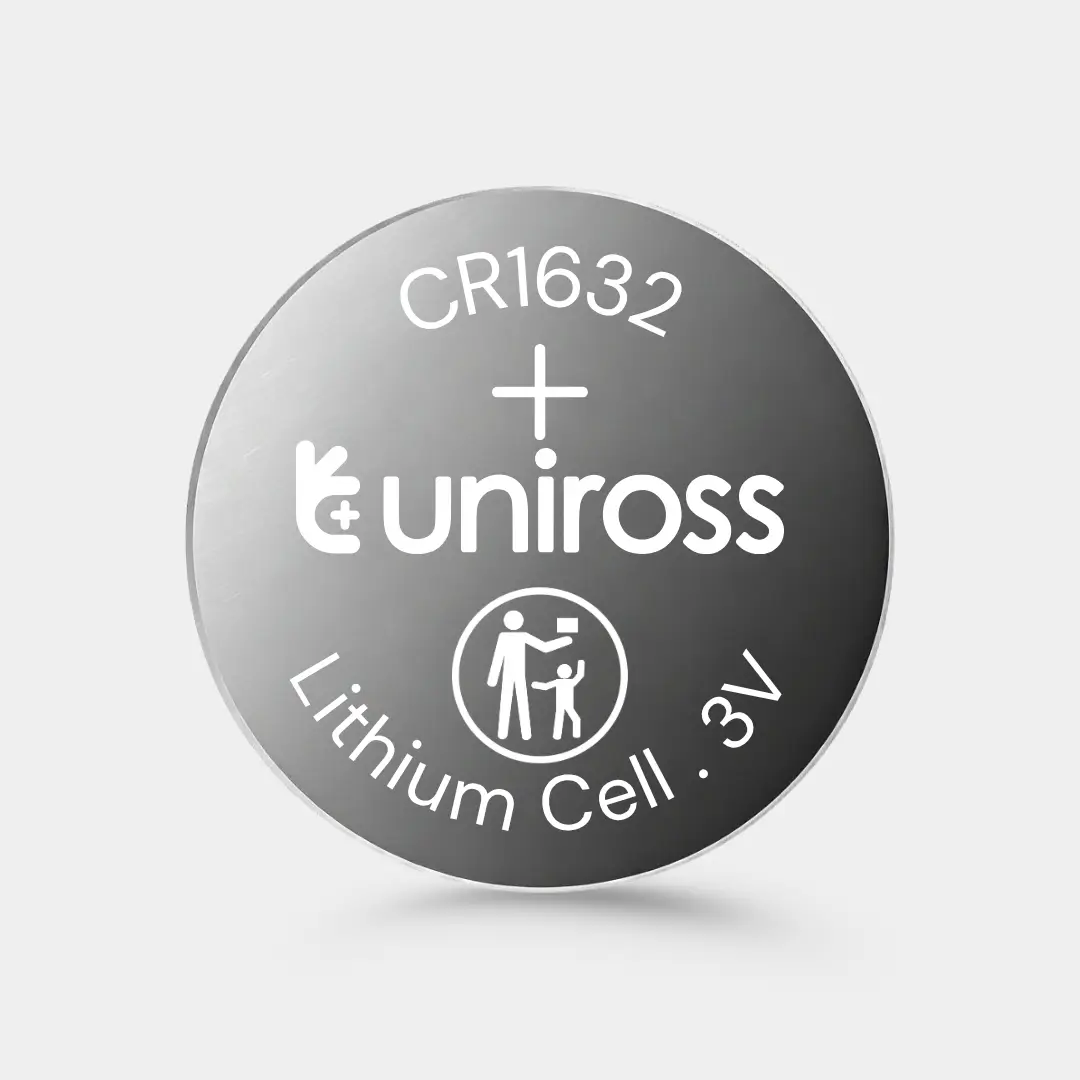

The Uniross CR1632 HP delivers 140 mAh at a stable 3V in a 16mm diameter, 3.2mm profile — 75% more capacity than the CR1620 HP in the same footprint width, achieved through the additional 1.2mm of cell height. The HP configuration provides 4 mA continuous and 10 mA pulse current ratings, making the CR1632 HP the preferred choice over standard CR1632 cells wherever the device design demands burst current resilience alongside extended runtime.
| Battery Type | CR1632 |
|---|---|
| Chemistry | Lithium Manganese Dioxide (Li-MnO₂) |
| Nominal Voltage (V) | 3 |
| Typical Capacity (mAh) | 140 |
| Standard Current (mA) | 0.1 |
| Continuous Current (Max)( mA) | 4 |
| Pulse Current (Max) (mA) | 10 |
| Max Dimensions (mm) | ø16.0 x 3.2 mm |
| Weight Approx (g) | 2.0 |
| Shelf life | 10 Years |
| Working Temperature (°C) | -20°C to +60°C |
