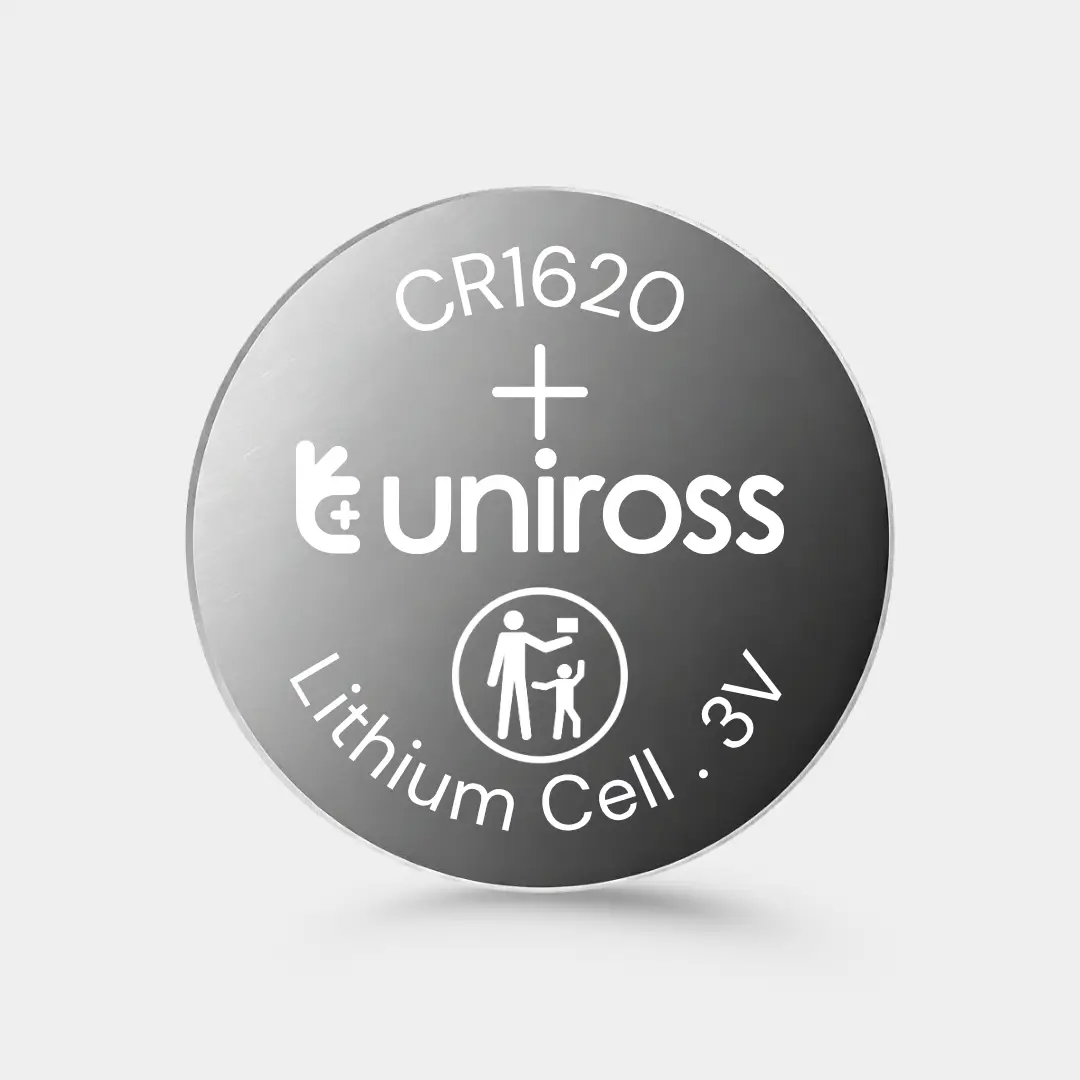

Uniross CR1620 lithium coin cells deliver 70 mAh at 3V in a 16mm diameter, 2.0mm profile — 40% more capacity than the CR1616 in the same footprint, with identical current ratings of 3 mA continuous and 8 mA pulse. When a device is sized for the 16mm battery compartment and service interval is the primary engineering objective, the CR1620 is the preferred upgrade over the CR1616 — reducing maintenance and field replacement costs without any housing redesign. It is widely specified in key fobs, medical wearables, and IoT nodes where longer deployment between battery changes is a measurable operational advantage.
| Battery Type | CR1620 |
|---|---|
| Chemistry | Lithium Manganese Dioxide (Li-MnO₂) |
| Nominal Voltage (V) | 3V |
| Typical Capacity (mAh) | 70 mAh |
| Continuous Current (Max)( mA) | 3 mA |
| Pulse Current (Max) (mA) | 8 mA |
| Max Dimensions (mm) | ø16.0 x 2.0 mm |
| Weight Approx (g) | 1.3 g |
| Shelf life | 5 Years |
| Working Temperature (°C) | -20°C to +60°C |
