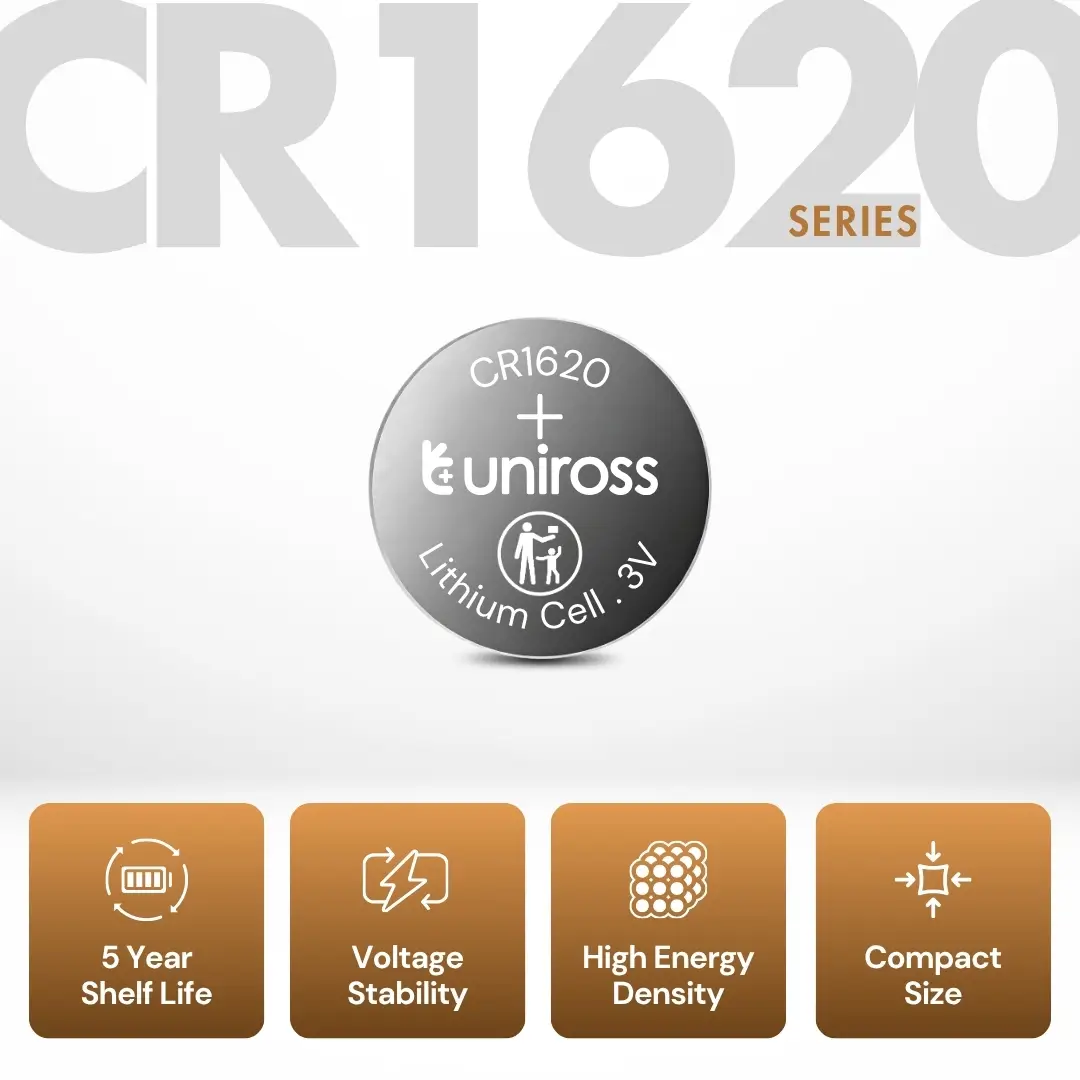

The Uniross CR1620 HP is a high power lithium manganese dioxide coin cell delivering 80 mAh at a stable 3V in a compact 16mm diameter, 2.0mm profile. The HP designation signals a higher continuous and pulse current capability than standard CR1620 cells, making it the correct specification for slim-profile key fobs, wearable devices, and wireless sensors that require reliable burst current performance within the 16mm footprint constraint.
| Battery Type | CR1620 |
|---|---|
| Chemistry | Lithium Manganese Dioxide (Li-MnO₂) |
| Nominal Voltage (V) | 3 |
| Typical Capacity (mAh) | 80 |
| Standard Current (mA) | 0.1 |
| Continuous Current (Max)( mA) | 4 |
| Pulse Current (Max) (mA) | 10 |
| Max Dimensions (mm) | ø16.0 x 2.0 mm |
| Weight Approx (g) | 1.3 |
| Shelf life | 10 Years |
| Working Temperature (°C) | -20°C to +60°C |
