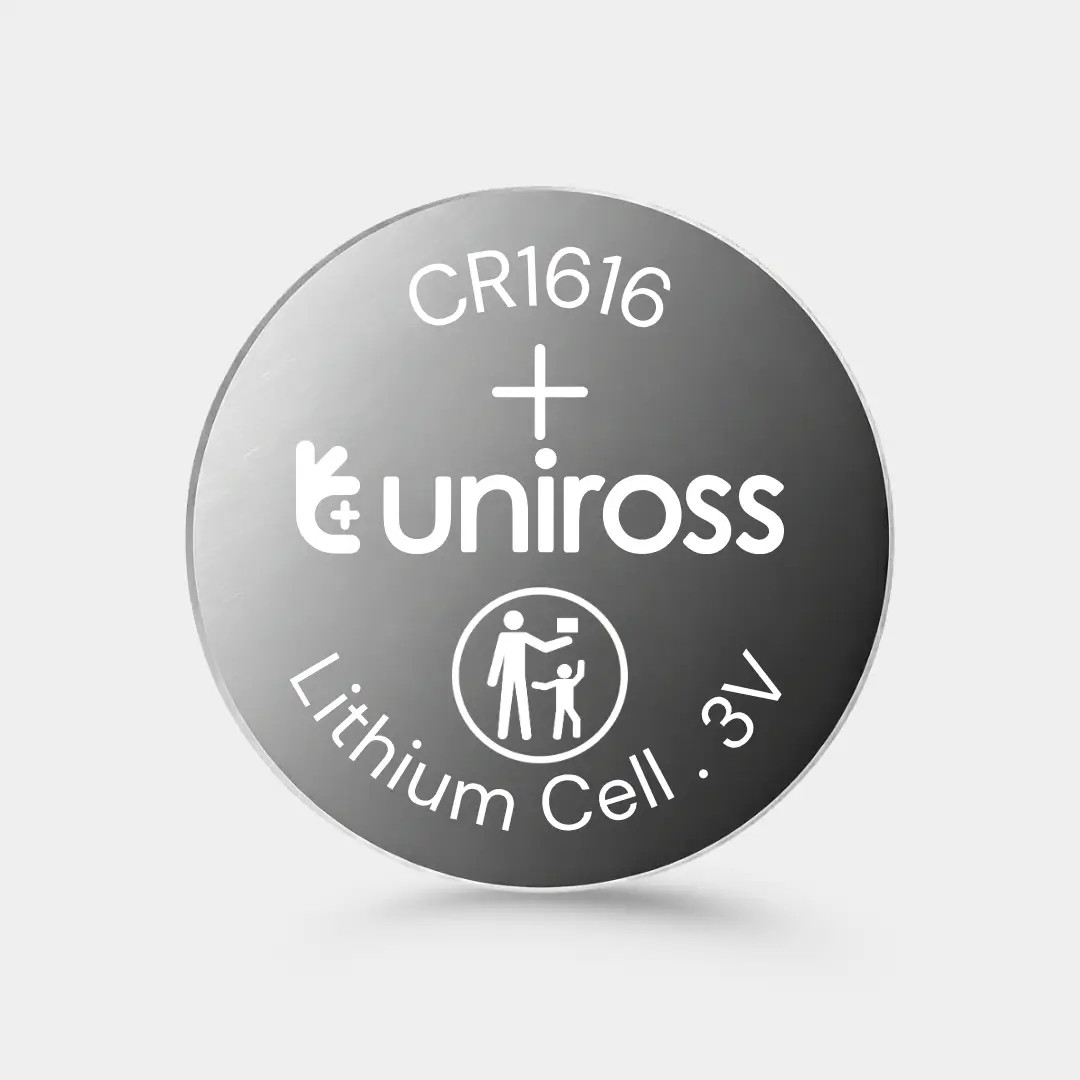

Uniross CR1616 lithium coin cells deliver 50 mAh at 3V in a 16mm diameter, 1.6mm profile. The step up to the 16mm footprint brings higher current ratings — 3 mA continuous and 8 mA pulse — while the 1.6mm height keeps the cell within tight height budgets of slim key fobs, thin medical patch devices, and card-format electronics. For procurement teams sourcing into slim-form OEM designs that demand more current drive than the 12mm series can provide, the CR1616 is the standard specification.
| Battery Type | CR1616 |
|---|---|
| Chemistry | Lithium Manganese Dioxide (Li-MnO₂) |
| Nominal Voltage (V) | 3V |
| Typical Capacity (mAh) | 50 mAh |
| Continuous Current (Max)( mA) | 3 mA |
| Pulse Current (Max) (mA) | 8 mA |
| Max Dimensions (mm) | ø16.0 x 1.6 mm |
| Weight Approx (g) | 1.2 g |
| Shelf life | 5 Years |
| Working Temperature (°C) | -20°C to +60°C |
