Uniross CR1025 lithium coin cells deliver 30 mAh at 3V in a 10mm diameter, 2.5mm profile — solving the engineering challenge of primary power in the slimmest 10mm device housings. When overall unit thickness is a binding specification and the 10mm footprint is mandated by housing geometry, the CR1025 is the direct solution for ultra-thin wearables, card-format medical devices, and compact key fobs where no taller alternative can be accepted. Sourced from European distribution with bulk and OEM availability for industrial and medical procurement programmes.
| Battery Type | CR1025 |
|---|---|
| Chemistry | Lithium Manganese Dioxide (Li-MnO₂) |
| Nominal Voltage (V) | 3V |
| Typical Capacity (mAh) | 30 mAh |
| Continuous Current (Max)( mA) | 2 mA |
| Pulse Current (Max) (mA) | 5 mA |
| Max Dimensions (mm) | ø10.0 x 2.5 mm |
| Weight Approx (g) | 0.7 g |
| Shelf life | 5 Years |

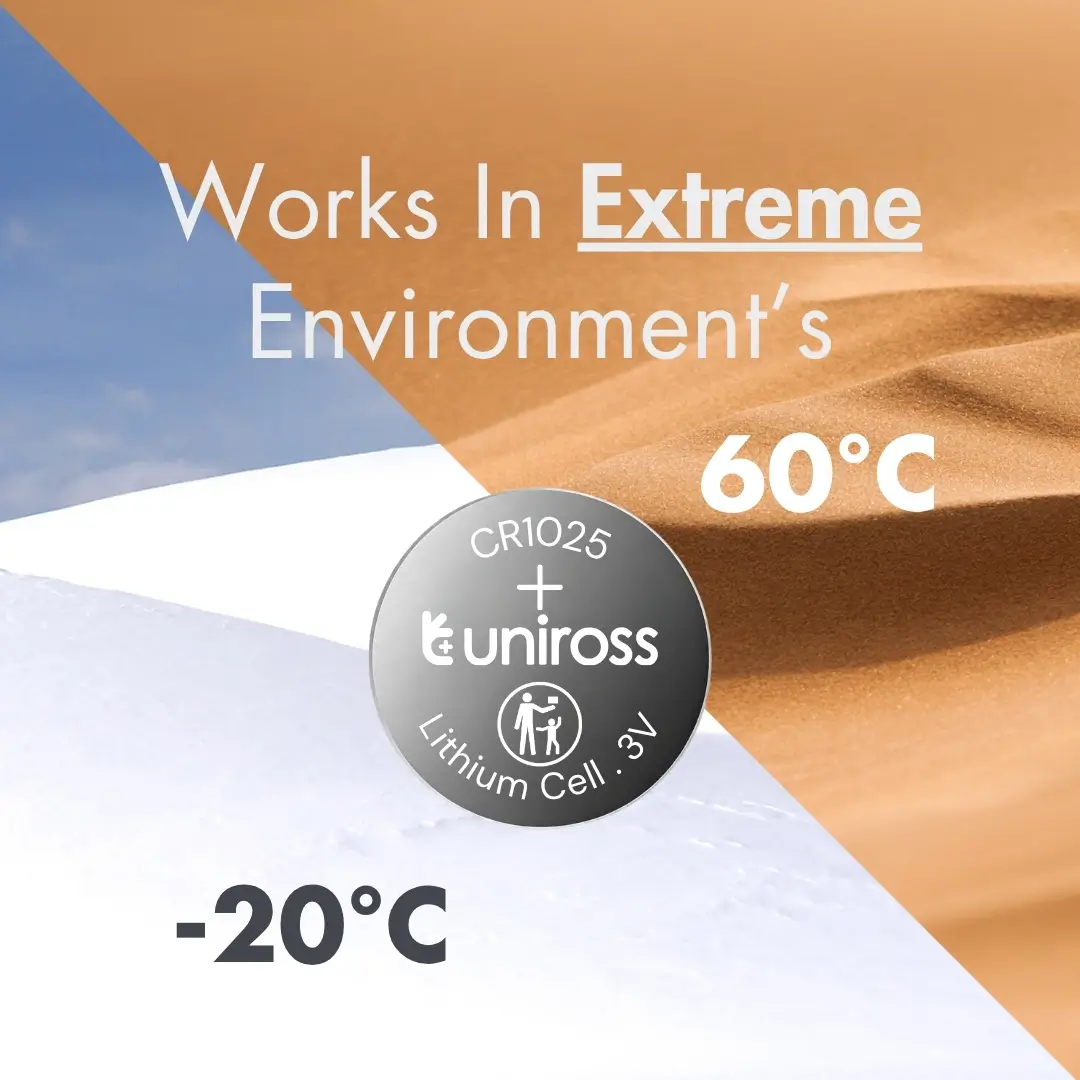

| Working Temperature (°C) | -20°C to +60°C |
