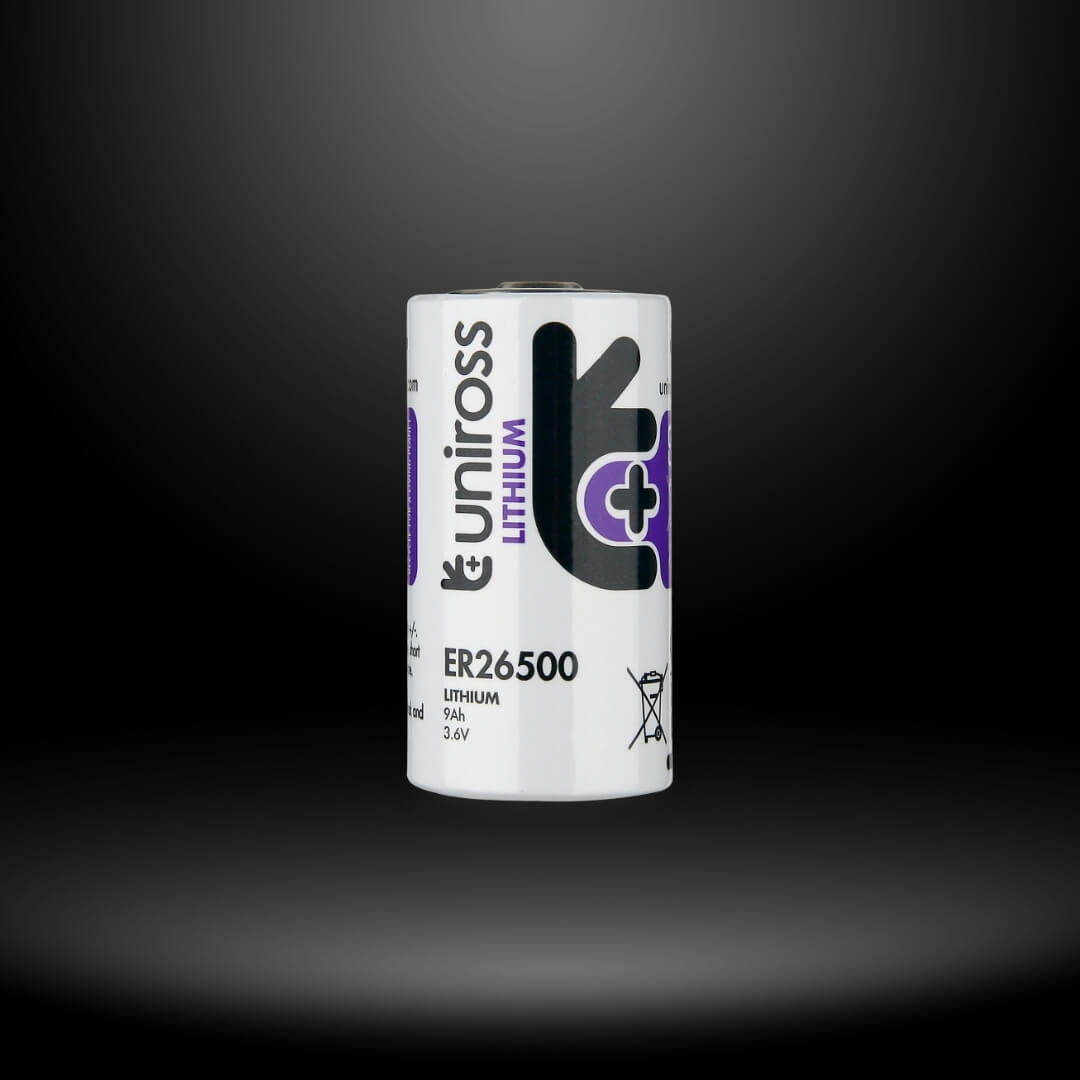

Uniross Industrial UER26500 – Lithium Thionyl Chloride Battery
Model No: UER26500
Maximum energy endurance for high-drain industrial applications. The Uniross UER26500 (C-size) is a high-performance Lithium Thionyl Chloride (Li-SOCl2) battery engineered for B2B sectors requiring superior capacity and reliability in mission-critical environments. With a massive 8.5 Ah nominal capacity and an energy density exceeding $620~Wh/kg$, this cell provides long-term power for heavy-duty industrial instruments and smart infrastructure.Designed with a high-capacity bobbin-type construction, the UER26500 delivers a stable 3.6V output and a 10-year service life, making it the primary choice for professional deployments where battery longevity is essential.
Recommended for high drain devices
Product Features
Key Industrial Advantages
- Best-in-Class Energy Density: Delivers over $620~Wh/kg$, providing maximum energy in a robust C-size form factor.
- Extreme Temperature Range: Engineered to perform in the harshest environments, from $-55°C to $+85°C.
- Decade-Long Reliability: Features an exceptionally low self-discharge rate, ideal for long-term deployments in IoT and utility metering.
- High Operating Voltage: Supports a maximum continuous current of 100 mA and pulse currents up to 200 mA.
- Customizable Terminations: Available in standard (S), solder tabs (T), or axial pins (P) to integrate seamlessly into your PCB manufacturing process.
Technical Details
| Chemistry | Lithium Thionyl Chloride (Li-SOCl2) |
|---|---|
| Nominal Voltage (V) | 3.6V |
| Nominal Capacity (mAh) | 8500 mAh |
| Standard Current (mA) | 4 mA |
| Continuous Current (Max)( mA) | 100 mA |
| Pulse Current (Max)(mA) | 200 mA |
| Max Dimensions (mm) | Ø 26.2 x 50.0 |
| Weight Approx (g) | 53 g |
