Uniross Industrial UER14250 – 1/2AA Lithium Thionyl Chloride Battery
Model No: UER14250

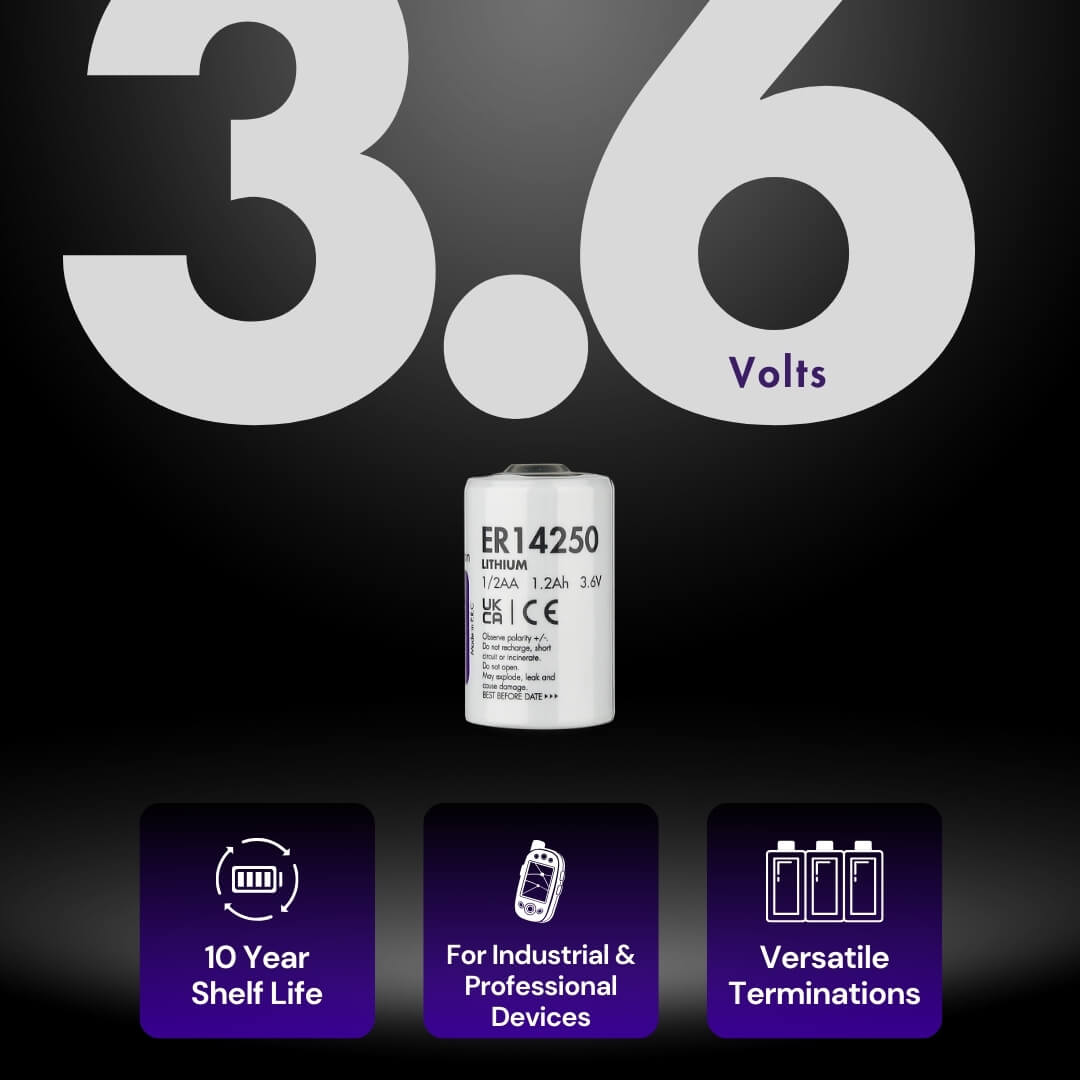

Powering the future of industrial IoT and remote monitoring. The Uniross UER14250 (1/2AA) is a professional-grade Lithium Thionyl Chloride (Li-SOCl2) battery engineered for applications requiring long-term reliability and high energy density. With a best-in-class energy density of over $620~Wh/kg$, this battery is the primary choice for mission-critical infrastructure where battery replacement is difficult or costly.Designed with a bobbin-type construction, the UER14250 provides a stable 3.6V output and a 10-year shelf life, ensuring your devices remain powered in the field for a decade or more.

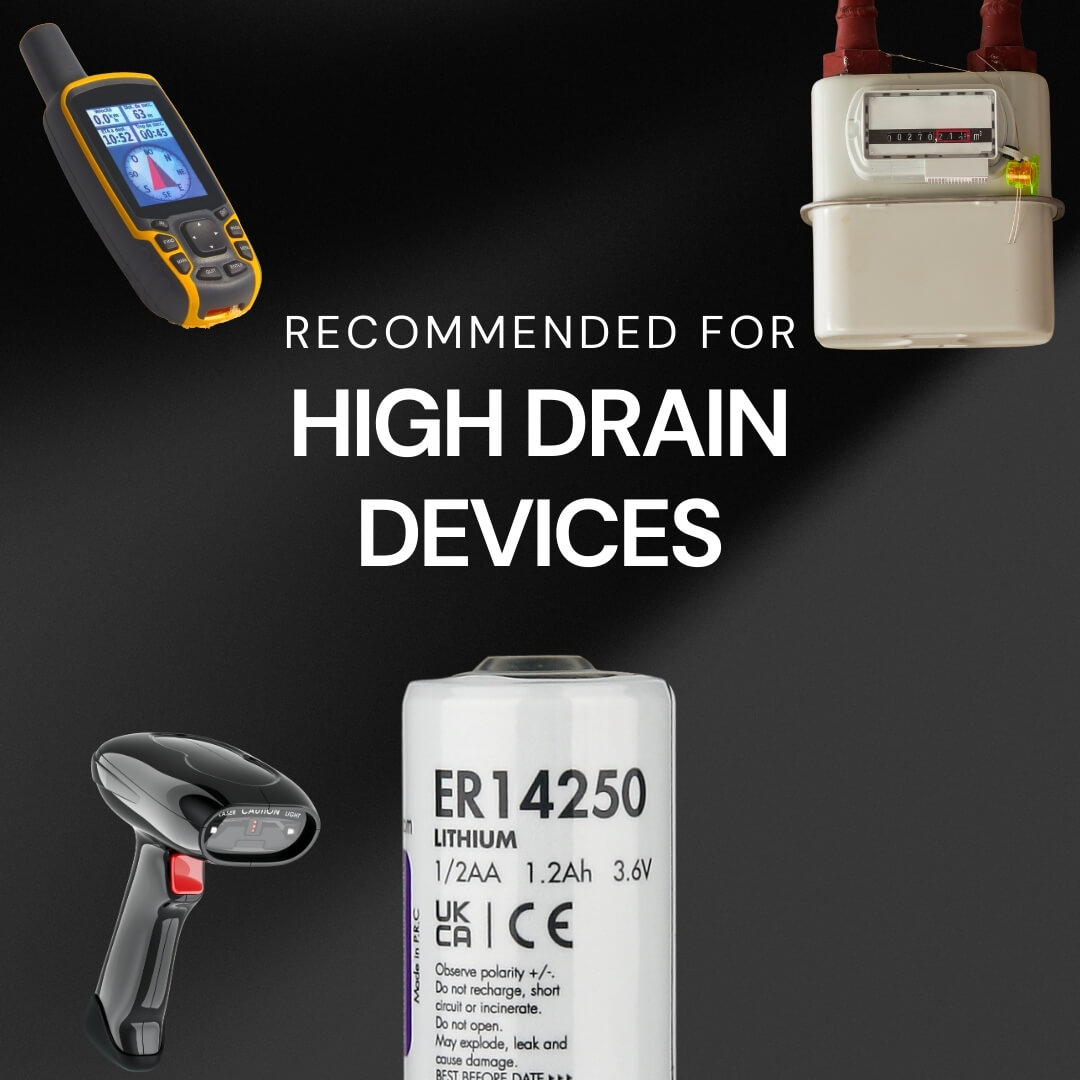

Recommended for high drain devices
Product Features
Key Industrial Advantages
- Superior Energy Density: Delivers over $620~Wh/kg$, providing the highest capacity-to-weight ratio for compact industrial designs.
- Extreme Temperature Range: Engineered to perform in the harshest environments, from $-55°C to $+85°C.

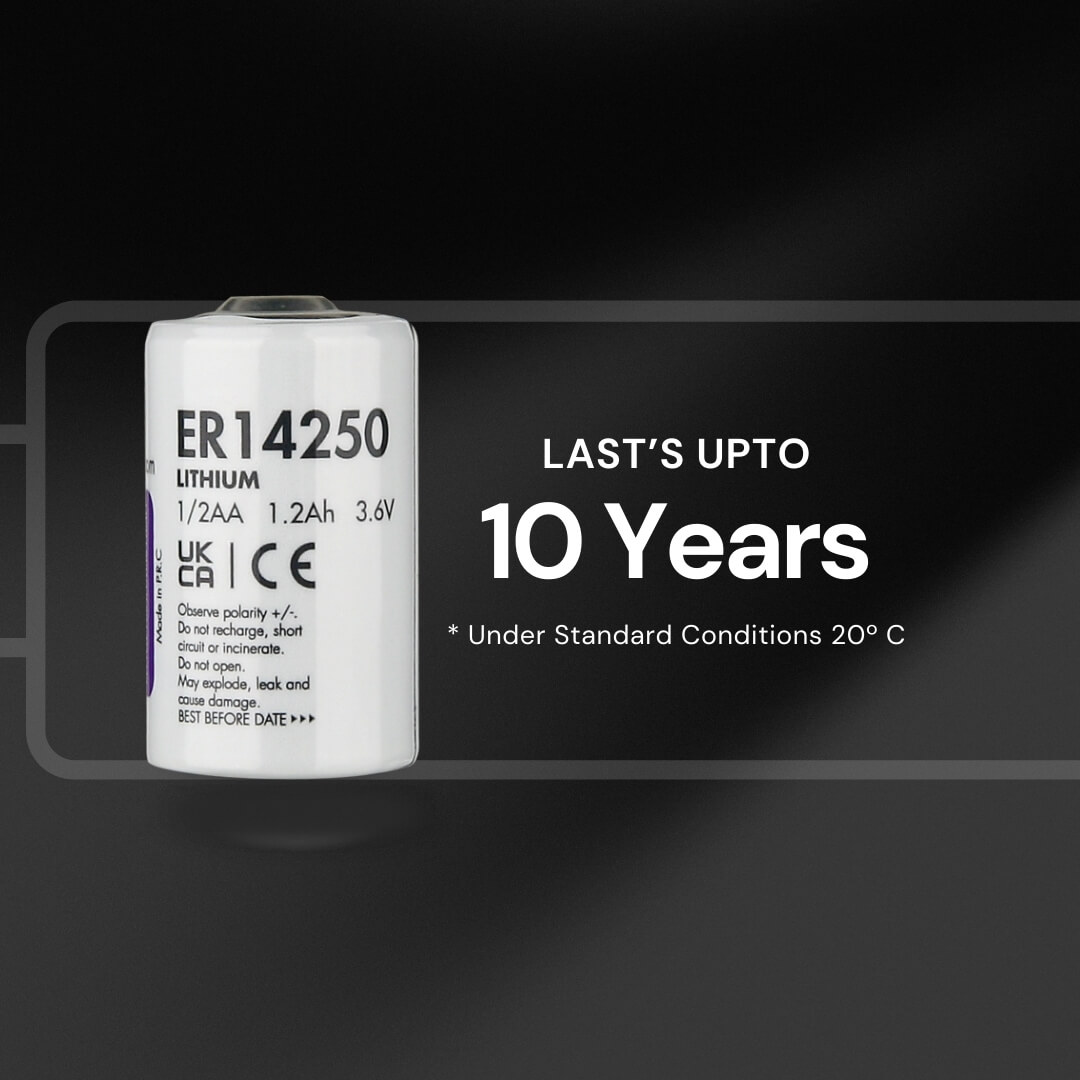

- 10-Year Service Life: Features an exceptionally low self-discharge rate, ideal for long-term deployments in IoT and utility metering.
- High Operating Voltage: Maintains a consistent voltage plateau between 3.3V and 3.6V throughout the discharge cycle.
- Customizable Terminations: Available in standard (S), solder tabs (T), or axial pins (P) to integrate seamlessly into your PCB manufacturing process.
Technical Details
| Chemistry | Lithium Thionyl Chloride (Li/SOCl2) |
|---|---|
| Nominal Voltage (V) | 3.6 |
| Standard Current (mA) | 0.5 |
| Continuous Current (Max)( mA) | 20 |
| Pulse Current (Max) (mA) | 50 |
| Shelf life | 10 Years |
| Max Dimensions (mm) | Ø 14.5 x 25.2 |
| Weight Approx (g) | 11 |
