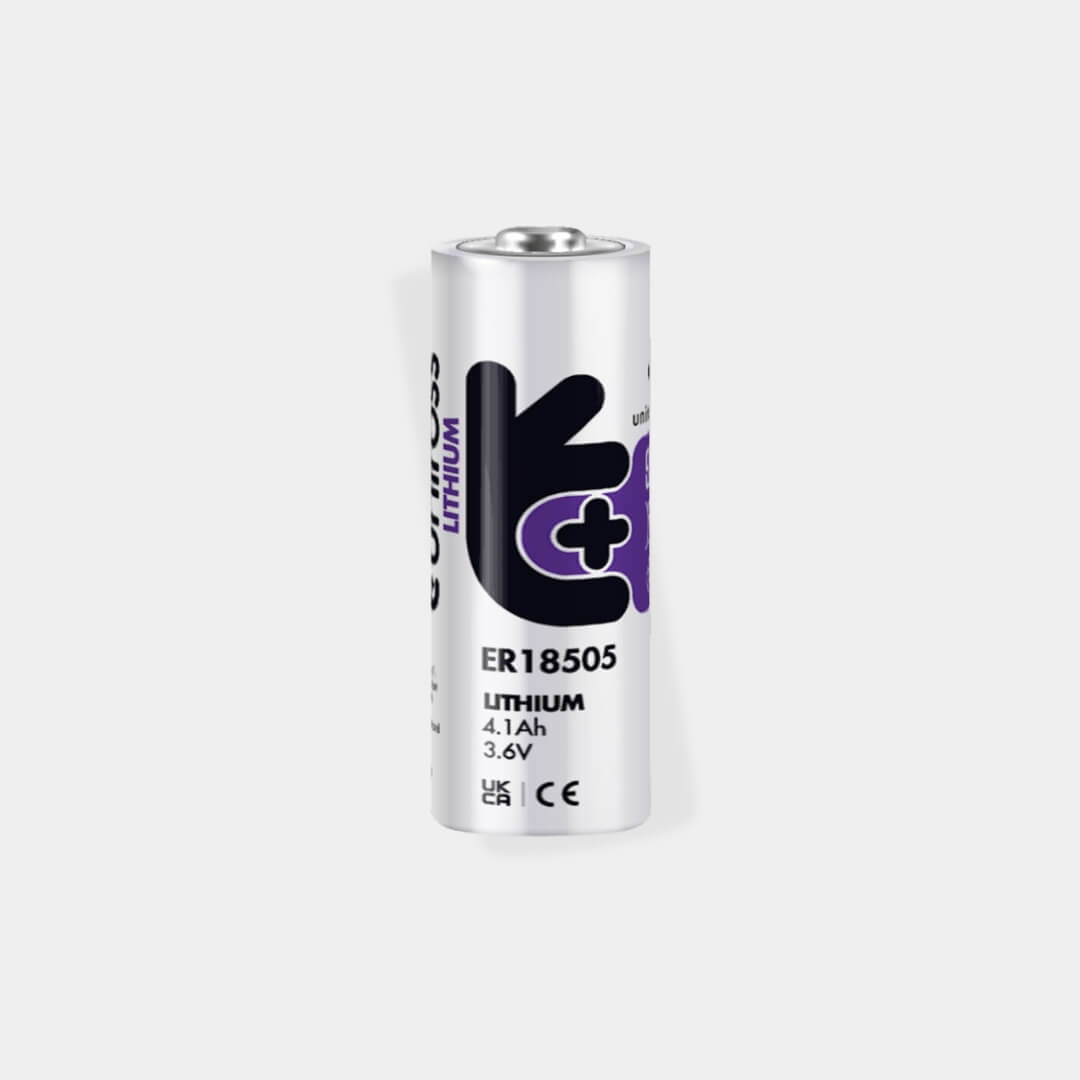

UER18505
Model No: UER18505
Recommended for high drain devices
Product Features

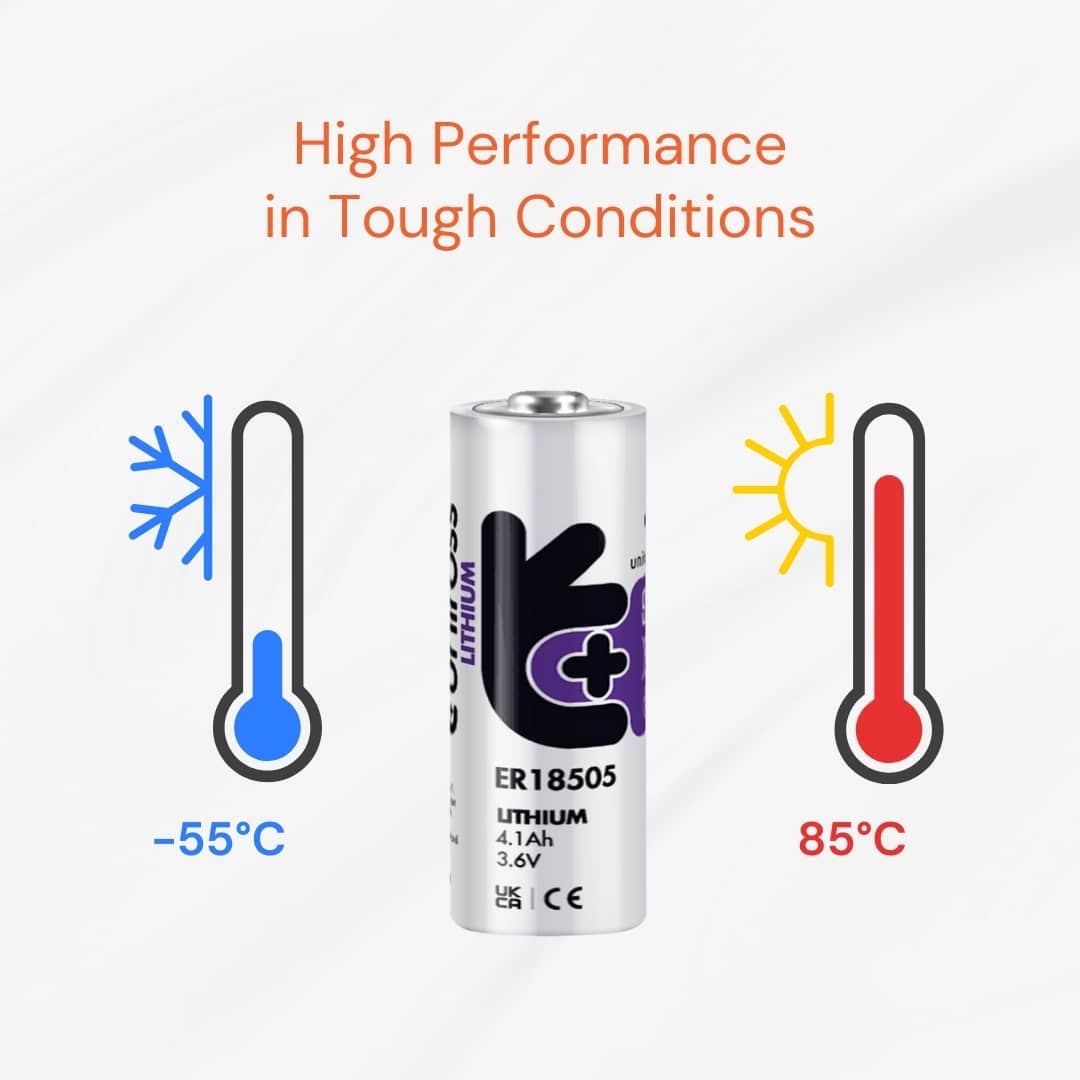

With a 4.1Ah capacity and 3.6V nominal voltage, the UER18505 battery supports high-drain devices with up to 150mA pulse current. It performs well in -55°C to +85°C environments, suitable for military applications and automotive sensors.
Technical Details
| Nominal Voltage (V) | 3.6 |
|---|---|
| Nominal Capacity (mAh) | 4100 |
| Standard Current (mA) | 2 |
| Continuous Current (Max)( mA) | 80 |
| Pulse Current (Max) (mA) | 150 |
| Max Dimensions (mm) | Ø 18.5 x 50.5 |
| Weight Approx (g) | 29 |
